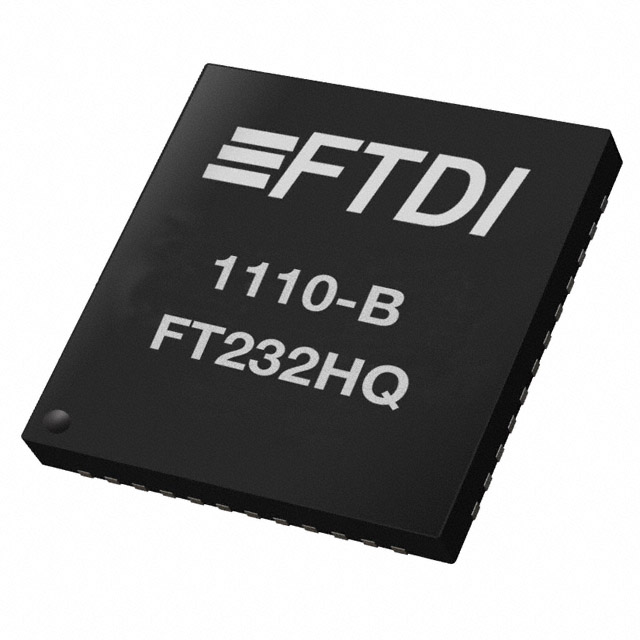

FT232HQ-REEL

Active

IC HS USB TO UART/FIFO 48QFN

Active

IC HS USB TO UART/FIFO 48QFN

Description

General part information

USB Bridge, USB to UART,FIFO USB 2.0 UART, FIFO Interface 48-QFN (8x8)

Parameters and characteristics for this part

Specification	FT232HQ-REEL

Current - Supply	24 mA
Function	Bridge, FIFO, USB to UART
Interface	UART, FIFO
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	48-VFQFN Exposed Pad
Package Length	8 mm
Package Name	48-QFN
Package Width	8 mm
Protocol	USB
Standards	USB 2.0
Voltage - Supply (Range 1 Maximum)	1.98 V
Voltage - Supply (Range 1 Minimum)	1.62 V
Voltage - Supply (Range 2 Maximum)	3.63 V
Voltage - Supply (Range 2 Minimum)	2.97 V

Part	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 2 Minimum)	Package / Case	Package Name	Package Length	Package Width	Standards	Operating Temperature (Min)	Operating Temperature (Max)	Current - Supply	Protocol	Function	Interface
FTDI, Future Technology Devices International Ltd FT232HQ-REEL	1.62 V	1.98 V	3.63 V	2.97 V	48-VFQFN Exposed Pad	48-QFN	8 mm	8 mm	USB 2.0	-40 °C	85 °C	24 mA	USB	Bridge FIFO USB to UART	FIFO UART
FTDI, Future Technology Devices International Ltd FT232HQ-TRAY	1.62 V	1.98 V	3.63 V	2.97 V	48-VFQFN Exposed Pad	48-QFN	8 mm	8 mm	USB 2.0	-40 °C	85 °C	24 mA	USB	Bridge FIFO USB to UART	FIFO UART
