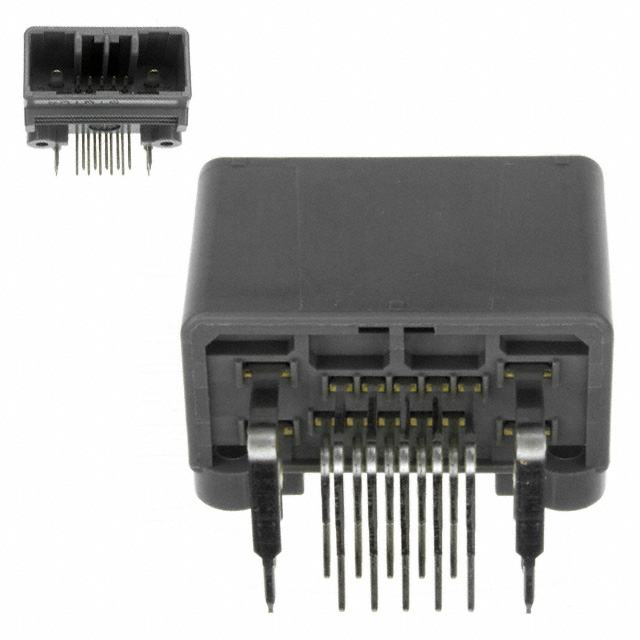

MX34014NFA
ActiveJAE Electronics
CONN HEADER R/A 14POS 2.2MM
Deep-Dive with AI
Search across all available documentation for this part.
MX34014NFA
ActiveJAE Electronics
CONN HEADER R/A 14POS 2.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MX34014NFA |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Insulation Color | Gray |
| Insulation Height | 0.65 in |
| Insulation Height | 16.5 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.087 in |
| Pitch - Mating | 2.2 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.73 | |
| 10 | $ 2.48 | |||
| 80 | $ 2.18 | |||
| 714 | $ 1.85 | |||
| 1428 | $ 1.58 | |||
| 4998 | $ 1.42 | |||
Description
General part information
MX34014N Series
Connector Header Through Hole, Right Angle 14 position 0.087" (2.20mm)
