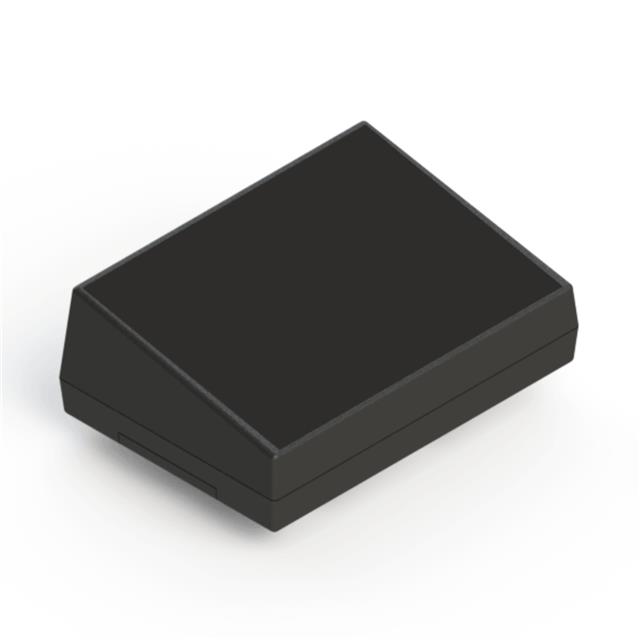

Specification	27S,BK

Area (L x W)	33.6 in²
Color	Black
Container Type	Box
Design	Split Sides, Slanted Top
Features	Battery Compartment, 9V, PCB Supports
Height	2.49 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension Length	6.88 in
Size / Dimension Width	4.88 in
Thickness	0.1 in
Weight	0.43 lb

27S Series

Part	Weight	Color	Design	Size / Dimension Width	Size / Dimension Length	Ratings	Material	Features	Container Type	Material Flammability Rating	Thickness	Height	Area (L x W)
Serpac 27S,GY	0.43 lb	Gray	Slanted Top Split Sides	4.88 in	6.88 in	IP40	ABS Plastic	9V Battery Compartment PCB Supports	Box	UL94 HB	0.1 in	2.49 in	33.6 in²
Serpac 27S,BK	0.43 lb	Black	Slanted Top Split Sides	4.88 in	6.88 in	IP40	ABS Plastic	9V Battery Compartment PCB Supports	Box	UL94 HB	0.1 in	2.49 in	33.6 in²
Serpac 27S,AL	0.43 lb	Almond	Slanted Top Split Sides	4.88 in	6.88 in	IP40	ABS Plastic	9V Battery Compartment PCB Supports	Box	UL94 HB	0.1 in	2.49 in	33.6 in²
