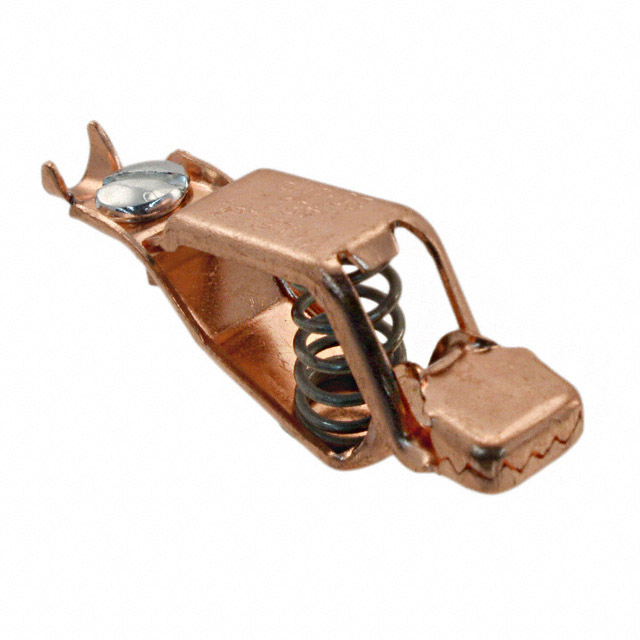

BU-48C
ActiveMueller Electric Co
TEST CLIP, AUTOMOTIVE, 12.7 MM, 20 A
Deep-Dive with AI
Search across all available documentation for this part.
BU-48C
ActiveMueller Electric Co
TEST CLIP, AUTOMOTIVE, 12.7 MM, 20 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-48C |
|---|---|
| Color | Natural |
| Current Rating (Amps) | 20 A |
| Insulation | Non-Insulated |
| Jaw Opening | 12.7 mm |
| Jaw Opening | 0.5 in |
| Length | 2 " |
| Length | 2 " |
| Length | 50.8 mm |
| Material | Copper |
| Quantity | 1 Box |
| Ratings | AA59466-007 |
| Termination | Crimp or Screw |
| Type | Heavy Duty, 3 Sided Jaw |
BU-48 Series
| Part | Color | Length | Length | Length | Quantity | Material | Jaw Opening | Jaw Opening | Ratings | Current Rating (Amps) | Type | Termination | Insulation | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mueller Electric Co | Natural | 2 " | 2 " | 50.8 mm | 1 Box | Copper | 12.7 mm | 0.5 in | AA59466-007 | 20 A | Heavy Duty 3 Sided Jaw | Crimp or Screw | Non-Insulated | |
Mueller Electric Co | Natural | 2 " | 2 " | 50.8 mm | 1 Box | 12.7 mm | 0.5 in | 10 A | Heavy Duty 3 Sided Jaw | Crimp or Screw | Non-Insulated | Zinc |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-48 Series
The BU-48C is a 20A Automotive Analyzer Clip of solid copper with 0.5-inch jaw opening. This clip features teeth mesh on three sides of the jaw. It is primary used for automotive analyzers and test systems.
