TE Connectivity AMP Connectors

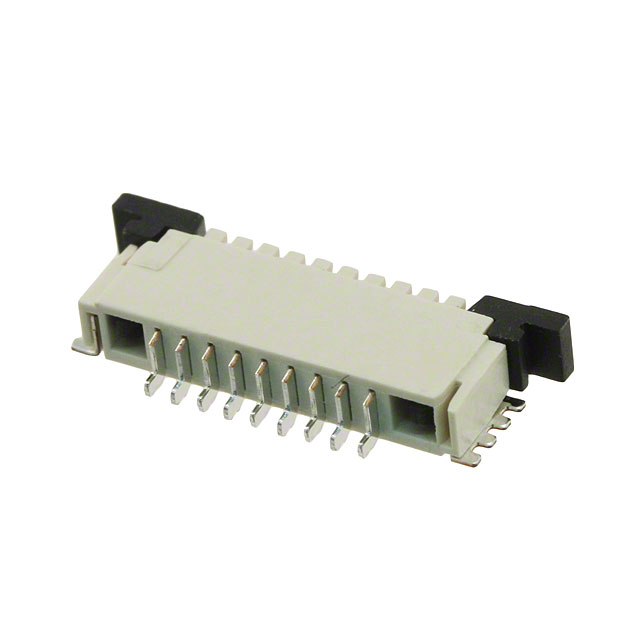

CONN FPC TOP 9POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Standard Flexible Printed Circuit Connectors

84953-9

Active

TE Connectivity AMP Connectors

CONN FPC TOP 9POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet Standard Flexible Printed Circuit Connectors

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.01
		10	$ 0.96
		25	$ 0.92
		50	$ 0.91
		100	$ 0.79
		250	$ 0.76
		500	$ 0.72
	Digi-Reel®	1	$ 1.01
		10	$ 0.96
		25	$ 0.92
		50	$ 0.91
		100	$ 0.79
		250	$ 0.76
		500	$ 0.72
	Tape & Reel (TR)	1500	$ 0.52

Description

General part information

84953 Series

9 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

Datasheet

Standard Flexible Printed Circuit Connectors

Datasheet

Specification	84953-9	84953 Series

Actuator Color	Black	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Straight	Straight
Connector/Contact Type	Contacts, Top	Contacts, Top
Contact Finish	Tin	Tin
Contact Finish Thickness	2 µm	2 µm
Contact Finish Thickness	78.7 µin	78.7 µin
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Zero Insertion Force (ZIF), Solder Retention	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC	FPC
Height Above Board	0.101 "	0.101 "
Height Above Board	2.56 mm	2.56 mm
Housing Color	Natural	Natural
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Locking Feature	Slide Lock	Slide Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	9	4 - 30
Number of Positions	-	16
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	200 V	200 V
