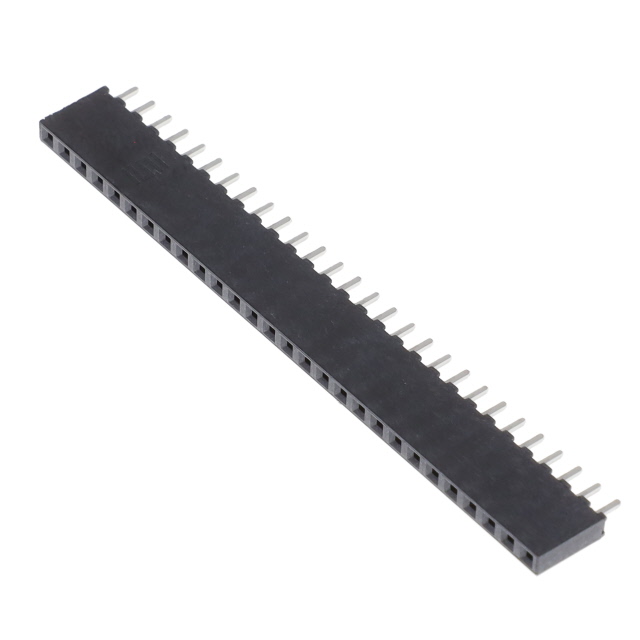

SQT-128-01-F-S

Active

Samtec Inc.

CONN RCPT 28POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SQT Datasheet +1

SQT-128-01-F-S

Active

Samtec Inc.

CONN RCPT 28POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet SQT Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQT-128-01-F-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder

SQT-128 Series

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Material	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Connector Type	Material Flammability Rating	Number of Positions Loaded	Termination	Current Rating (Amps)	Insulation Color	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. SQT-128-01-L-S-RA	0.079 in	2 mm	10 çin	0.25 çm	0.09 "	2.29 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Tin	Through Hole Right Angle	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	28	1	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze
Samtec Inc. SQT-128-02-F-D	0.25 in	6.35 mm			0.6 in	15.24 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Tin	Through Hole	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	56	2	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze	Flash	0.079 in	2 mm
Samtec Inc. SQT-128-01-F-T-RA	0.236 in	6 mm			0.09 "	2.29 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Tin	Through Hole Right Angle	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	84	3	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze	Flash	0.079 in	2 mm
Samtec Inc. SQT-128-03-G-Q	0.25 in	6.35 mm	20 µin	0.51 µm	0.208 in	5.28 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Gold	Through Hole	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	112		-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze		0.079 in	2 mm	3 µin	0.076 µm
Samtec Inc. SQT-128-01-F-S	0.25 in	6.35 mm			0.09 "	2.29 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Tin	Through Hole	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	28	1	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze	Flash
Samtec Inc. SQT-128-03-G-D	0.25 in	6.35 mm	20 µin	0.51 µm	0.208 in	5.28 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Gold	Through Hole	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	56	2	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze		0.079 in	2 mm	3 µin	0.076 µm
Samtec Inc. SQT-128-02-G-D	0.25 in	6.35 mm	20 µin	0.51 µm	0.6 in	15.24 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Gold	Through Hole	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	56	2	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze		0.079 in	2 mm	3 µin	0.076 µm
Samtec Inc. SQT-128-01-F-D-RA					0.09 "	2.29 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Tin	Through Hole Right Angle	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	56	2	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze	Flash	0.079 in	2 mm			0.157 in	4 mm
Samtec Inc. SQT-128-01-F-Q	0.25 in	6.35 mm			0.09 "	2.29 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Tin	Through Hole	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	112		-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze	Flash	0.079 in	2 mm
Samtec Inc. SQT-128-01-L-T-RA	0.236 in	6 mm	10 çin	0.25 çm	0.09 "	2.29 mm	Forked	Liquid Crystal Polymer (LCP)	Gold	Tin	Through Hole Right Angle	Receptacle	UL94 V-0	All	Solder	5.1 A	Black	84	3	-55 °C	125 °C	Push-Pull	Board to Board Cable	0.079 in	2 mm	Square	Phosphor Bronze		0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.82
		25	$ 4.35
		50	$ 4.05
		100	$ 3.85
		500	$ 3.60
		1000	$ 2.51
		2500	$ 2.48

SQT-128-01-F-S

Deep-Dive with AI

SQT-128-01-F-S

Deep-Dive with AI

Technical Specifications

SQT-128 Series

Pricing

Description

SQT-128 Series

Documents

Datasheet

SQT Datasheet

2.00 mm Shrouded Terminal Strip

SQT-128 Series
