8641 0605000

Active

Belden Inc.

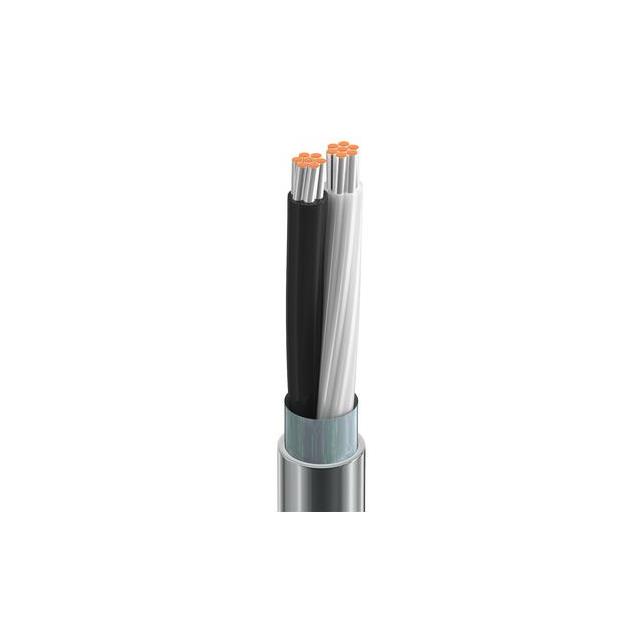

CABLE 2COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8641 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Wire Gauge	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket Color	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Shield Material	Jacket (Insulation) Material	Length [x]	Length [x]
Belden Inc. 8641 0605000	Copper Tinned	2	0.025 in	0.635 mm	100 %	Polyethylene (PE)	-20 C	80 C	300 V	24 AWG	Foil	4.27 mm	0.168 in	Drain Wire	Chrome	Audio Control Instrumentation	32 AWG	7	Multi-Conductor	Aluminum	Poly-Vinyl Chloride (PVC)
Belden Inc. 8641 060500	Copper Tinned	2	0.025 in	0.635 mm	100 %	Polyethylene (PE)	-20 C	80 C	300 V	24 AWG	Foil	4.27 mm	0.168 in	Drain Wire	Chrome	Audio Control Instrumentation	32 AWG	7	Multi-Conductor	Aluminum	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 0.92

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 24 AWG Foil 5000' (1524.0m)
