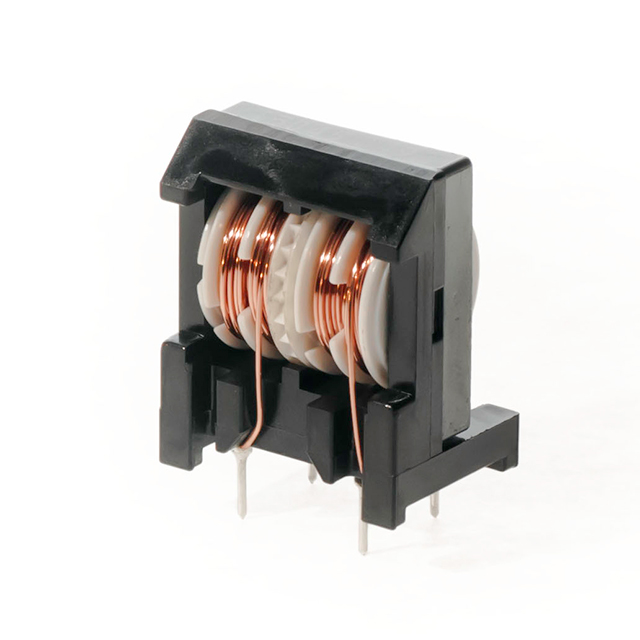

SSRH7HS-M06185

Active

KEMET

COMMON MODE CHOKES DUAL 18500UH 10KHZ 0.6A 0.69OHM DCR THRU-HOLE TRAY

Search across all available documentation for this part.

Active

KEMET

COMMON MODE CHOKES DUAL 18500UH 10KHZ 0.6A 0.69OHM DCR THRU-HOLE TRAY

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Mounting Type	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max]	Height (Max) [Max]	Current Rating (Max) [Max]	Package / Case	Package / Case	DC Resistance (DCR) (Max)
KEMET SSRH7HS-M20013	250 V	Through Hole	1.3 mH	80 mOhm	120 °C	-25 °C	2	18 mm	14.5 mm	0.571 in	0.709 in	12 mm	0.472 in	2 A	4 Lead	Vertical
KEMET SSRH7HS-M06185	250 V	Through Hole	18.5 mH		120 °C	-25 °C	2	18 mm	14.5 mm	0.571 in	0.709 in	12 mm	0.472 in	600 mA	4 Lead	Vertical	690 mOhm
KEMET SSRH7HS-M15036	250 V	Through Hole	3.6 mH	130 mOhm	120 °C	-25 °C	2	18 mm	14.5 mm	0.571 in	0.709 in	12 mm	0.472 in	1.5 A	4 Lead	Vertical
KEMET SSRH7HS-M11064	250 V	Through Hole	6.4 mH	240 mOhm	120 °C	-25 °C	2	18 mm	14.5 mm	0.571 in	0.709 in	12 mm	0.472 in	1.1 A	4 Lead	Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 690mOhm
