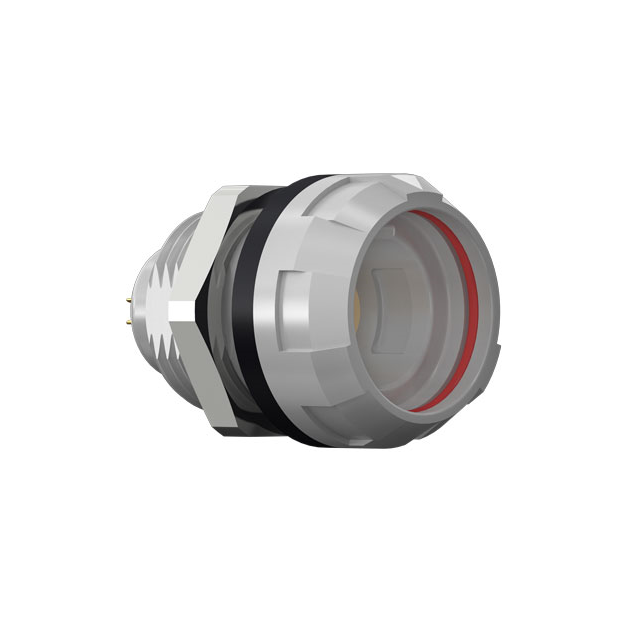

GE1MC7-P14LCC0-0000

Active

ODU

ODU MEDI-SNAP,RECEPTACLE, STY E,

Search across all available documentation for this part.

Active

ODU

ODU MEDI-SNAP,RECEPTACLE, STY E,

Technical Specifications

Parameters and characteristics for this part

Specification	GE1MC7-P14LCC0-0000

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP64/IP67 - Dust Tight, Water Resistant, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	14
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	C
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	25 V

Part	Applications	Orientation	Number of Positions	Contact Material	Primary Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Fastening Type	Contact Finish - Mating	Ingress Protection	Color	Insert Material	Shielding	Material Flammability Rating	Shell Size - Insert	Shell Material	Current Rating (Amps)
ODU GE1MC7-P14LCC0-0000	Industrial Measurement Medical Testing Equipment	C	14	Brass	Plastic	Bulkhead - Rear Side Nut	-50 °C	120 °C	Receptacle Female Sockets	25 V	Detent Lock Push-Pull	Gold	IP64/IP67 - Dust Tight Water Resistant Waterproof	Gray	Polyetheretherketone (PEEK)	Unshielded	UL94 V-0	1	Polysulfone (PSU)	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Receptacle, Female Sockets Solder Cup
