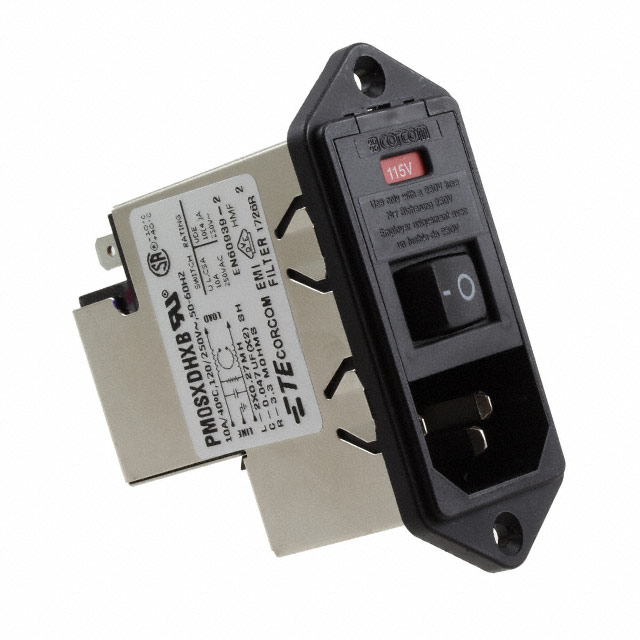

PM0SXDHXB

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PM0SXDHXB

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Shielded, Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm
Panel Cutout Dimensions [y]	54.1 mm
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Fuse Holder, Drawer	Connector Type	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Voltage Rating - Appliance Inlet	Approval Agency	Current Rating - Appliance Inlet	Accomodates a Fuse	Termination	Termination	Termination	Connector Style	Filter Type	Switch Features	Mounting Type
TE Connectivity Corcom Filters PM0SXDHXB	Fuse Holder, Twin Fused	Receptacle, Male Blades - Module	10 A	28.45 mm	54.1 mm	Shielded, Voltage Selector	120 VAC	CSA, UL, VDE	10 A		0.187 "	4.7 mm	Quick Connect	IEC 320-C14	Filtered (EMI, RFI) - Commercial, Medical	Switch On-Off	Flange, Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
