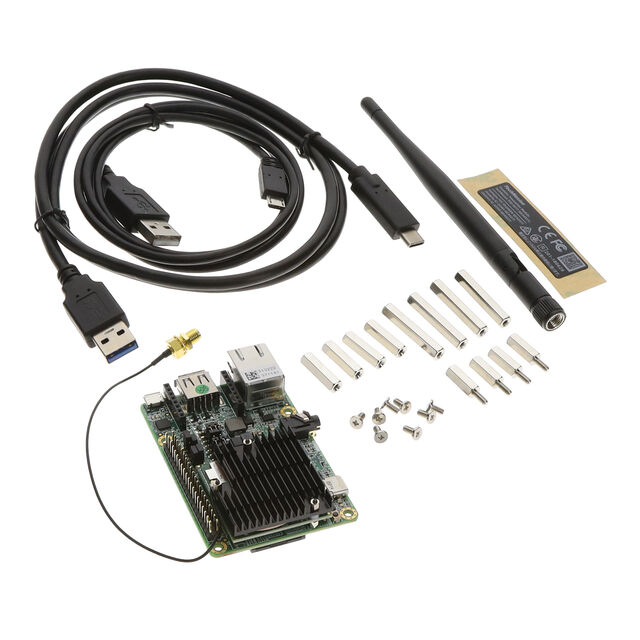

PICOPIIMX7R10

Active

TechNexion

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Search across all available documentation for this part.

Active

TechNexion

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 149.00

General part information

Single Board Computer 1GHz 2 Core 1GB/0GB RAM ARM Cortex-A7, Cortex-M4

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PICOPIIMX7R10	PICOIMX7 Series

Core Processor	ARM Cortex-A7, Cortex-M4	ARM Cortex-A7, Cortex-M4, i.MX 7Dual ARM Cortex-A7, Cortex-M4
Ethernet	RJ45 (1)	RJ45, RGMII, RJ45 (1)
Expansion Site/Bus	-	SPI, UART, MIPI CSI, Audio, GPIO, I2C, CANbus, TTL, PCIe
Form Factor	-	PICO
Number of Cores	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
RAM Capacity/Installed	0 GB, 1 GB	0 - 512 GB
RS-232 (422, 485)	1	0 - 1
Size / Dimension [x]	3.346 in	1.57 - 3.346 in
Size / Dimension [x]	85 mm	3.37 - 85.6 in
Size / Dimension [y]	2.205 in	1.46 - 2.205 in
Size / Dimension [y]	56 mm	2.224 - 56.5 in
Speed	1 GHz	1 GHz
Storage Interface	eMMC	eMMC, microSD
USB	USB 2.0 (1), USB 2.0 OTG Type-C (1)	USB 2.0 (2), USB OTG, USB, USB 2.0 (1), USB 2.0 OTG Type-C (1)
Video Outputs	MIPI-CSI, MIPI-DSI	RGB, LCD, TTL, MIPI-CSI, MIPI-DSI, MIPI
Watchdog Timer	False	False

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Part	Storage Interface	RAM Capacity/Installed	Speed	Video Outputs	Size / Dimension [x]	Size / Dimension [y]	Number of Cores	USB	Core Processor	Ethernet	Operating Temperature [Max]	Expansion Site/Bus	Size / Dimension [y]	Size / Dimension [x]	RS-232 (422, 485)	Form Factor
TechNexion PICOPIIMX7R10D05T	eMMC	0 GB, 1 GB	1 GHz	LCD, RGB, TTL	3.37 in, 85.6 mm	2.224 in, 56.5 mm	2	USB 2.0 (2)	ARM Cortex-A7, Cortex-M4	RJ45	60 °C	Audio, GPIO, I2C, MIPI CSI, SPI, UART
TechNexion PICOIMX7DR05MSDBB	eMMC, microSD	512 MB	1 GHz	MIPI-CSI, MIPI-DSI	40 mm	37 mm	2	USB, USB OTG	i.MX 7Dual ARM Cortex-A7, Cortex-M4	RGMII	60 °C	CANbus, GPIO, I2C, PCIe, SPI, TTL, UART	1.46 in	1.57 in	0	PICO
TechNexion PICOPIIMX7R10OV5645	eMMC	0 GB, 1 GB	1 GHz	LCD, MIPI	3.37 in, 85.6 mm	2.224 in, 56.5 mm	2	USB 2.0 (2)	ARM Cortex-A7, Cortex-M4	RJ45 (1)	60 °C	Audio, GPIO, I2C, SPI, TTL, UART
TechNexion PICOPIIMX7R10	eMMC	0 GB, 1 GB	1 GHz	MIPI-CSI, MIPI-DSI	85 mm	56 mm	2	USB 2.0 (1), USB 2.0 OTG Type-C (1)	ARM Cortex-A7, Cortex-M4	RJ45 (1)	60 °C		2.205 in	3.346 in	1
TechNexion PICOPIIMX7R10D05TOV5645	eMMC	0 GB, 1 GB	1 GHz	MIPI-CSI, MIPI-DSI	85 mm	56 mm	2	USB 2.0 (1), USB 2.0 OTG Type-C (1)	ARM Cortex-A7, Cortex-M4	RJ45 (1)	60 °C		2.205 in	3.346 in	1
TechNexion PICOPIIMX7R05	eMMC	0 GB, 1 GB	1 GHz	LCD, RGB, TTL	3.37 in, 85.6 mm	2.224 in, 56.5 mm	2	USB 2.0 (2)	ARM Cortex-A7, Cortex-M4	RJ45	60 °C	Audio, GPIO, I2C, MIPI CSI, SPI, UART
