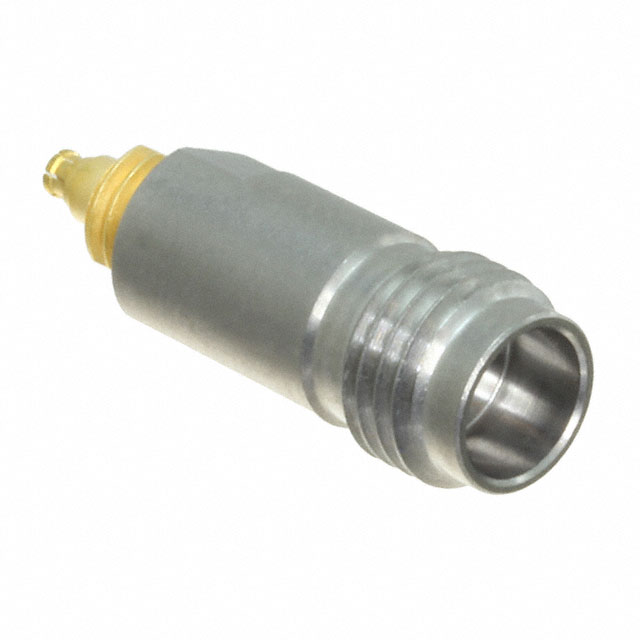

W1K108-K00D3

Active

Rosenberger

ADAPT WSMP JACK - 1.85MM JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT WSMP JACK - 1.85MM JACK

Technical Specifications

Parameters and characteristics for this part

Specification	W1K108-K00D3

Adapter Series	RPC-1.85 to WSMP
Adapter Type	Jack to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	WSMP Jack, Female Socket
Convert To (Adapter End)	Female Socket, 1.85mm Jack
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Style	Straight

ADAPT WSMP JACK - 1.85MM JACK

Part	Style	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Impedance	Convert From (Adapter End)	Center Gender	Body Material	Conversion Type	Adapter Type	Convert To (Adapter End)	Center Contact Material	Dielectric Material	Body Finish	Center Contact Plating	Mounting Type	Fastening Type	Frequency - Max [Max]
Rosenberger W1K108-K00D3	Straight	165 °C	-55 °C	RPC-1.85 to WSMP	50 Ohms	WSMP Jack, Female Socket	Female to Female	Beryllium Copper, Stainless Steel	Between Series	Jack to Jack	1.85mm Jack, Female Socket	Beryllium Copper	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)	Gold; Passivated	Gold	Free Hanging (In-Line)	Snap-On, Threaded	65 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector WSMP Jack, Female Socket To 1.85mm Jack, Female Socket 50 Ohms
