SMI10-5-V-I38

Active

CUI Inc.

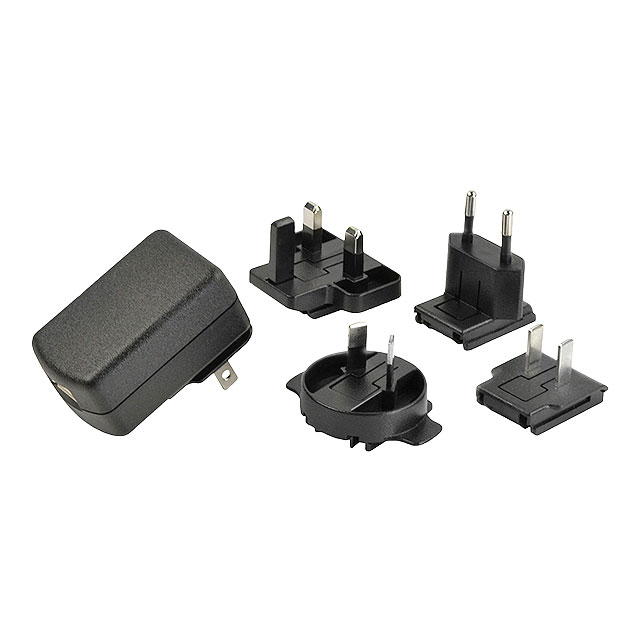

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	SMI10-5-V-I38

Applications	ITE (Commercial)
Approval Agency	IEC, RCM, PSE, UL, CSA, FCC, CCC, CB Scheme
Current - Output (Max) [Max]	2 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Included)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	10 W
Region Utilized	International
Size / Dimension [x]	2.4 ", 61 mm
Size / Dimension [y]	38 mm, 1.5 in
Size / Dimension [z]	1.15 ", 29.2 mm
Standard Number	C22.2 No. 60950-1, 62368-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	39.92 g
Weight	0.088 lb

Part	Power (Watts)	Voltage - Output	Form	Standard Number	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Approval Agency	Input Connector	Region Utilized	No Load Power Consumption [Max]	Weight	Weight
CUI Inc. SMI10-5-N-I38	10 W	5 V	Wall Mount (Class II)	60950-1 62368-1 C22.2 No. 60950-1	CoC Tier 2 Level VI	90 VAC	264 VAC	ITE (Commercial)	2.4 in	29.2 mm	38 mm	1.15 "	60.9 mm	1.5 in	Multi-Blade (Included)	2 A	40 °C	CB Scheme CCC CSA FCC IEC PSE RCM UL	Multi-Blade (Included)	North America	75 mW
CUI Inc. SMI10-5-V-I38	10 W	5 V	Wall Mount (Class II)	60950-1 62368-1 C22.2 No. 60950-1	CoC Tier 2 Level VI	90 VAC	264 VAC	ITE (Commercial)		1.15 " 29.2 mm	1.5 in 38 mm		2.4 " 61 mm		Multi-Blade (Included)	2 A	40 °C	CB Scheme CCC CSA FCC IEC PSE RCM UL	Multi-Blade	International	75 mW	39.92 g	0.088 lb
CUI Inc. SMI10-5-K-I38	10 W	5 V	Wall Mount (Class II)	62368-1	CoC Tier 2 Level VI	90 VAC	264 VAC	ITE (Commercial)		1.15 " 29.2 mm	1.5 in 38 mm		2.4 " 61 mm		Multi-Blade (Sold Separately)	2 A	40 °C	CB Scheme CCC CSA FCC IEC PSE RCM UL	Multi-Blade	International	75 mW	39.92 g	0.088 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
