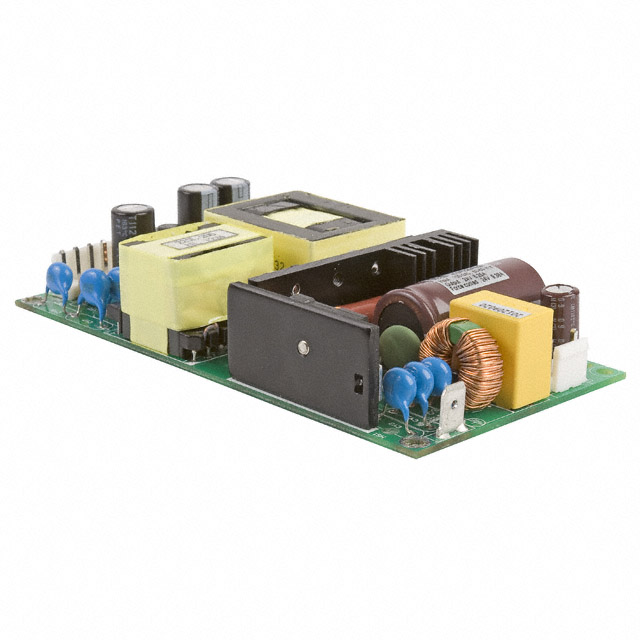

ECP225PS48

Active

XP POWER

AC/DC CONVERTER 48V 150W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 48V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	ECP225PS48

Applications	ITE (Commercial), Medical
Approval Agency	CE, CB
Current - Output 1	4.69 A
Efficiency	94 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	225 W
Power (Watts)	150 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Number of Outputs	Voltage - Output 1	Current - Output 1	Power (Watts)	Power (Watts)	Standard Number	Features	Minimum Load Required	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [z]
XP POWER ECP225PS48-A	Open Frame	-20 °C	70 °C	CB CE UL	1	48 V	3.1 A	225 W	150 W	62368-1	Adjustable Output PFC Remote On/Off Standby Output Universal Input		Chassis Mount	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	4000 V	ITE (Commercial) Medical	92 %
XP POWER ECP225PS48	Open Frame	-20 °C	70 °C	CB CE	1	48 V	4.69 A	225 W	150 W	62368-1	Adjustable Output Universal Input		Chassis Mount	1 "		2.5 in	5 in	127 mm		4000 V	ITE (Commercial) Medical	94 %	63.5 mm	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 145.89

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input

Technical documentation and resources
