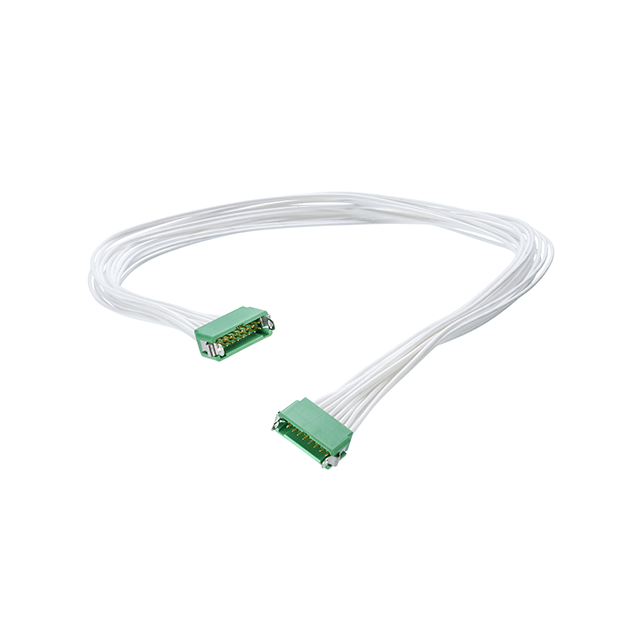

G125-MC22605L4-0300M

Active

Harwin Inc.

1.25MM M/M 26POS 28AWG 300MM

Search across all available documentation for this part.

Active

Harwin Inc.

1.25MM M/M 26POS 28AWG 300MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Length	Length	Length	Features	Number of Positions	Contact Finish	Shielding	Pitch - Connector	Pitch - Connector	Connector Type	Cable Termination	Length [x]	Length [x]	Length [x]
Harwin Inc. G125-MC22005L4-0150F	2	150 mm	5.91 "	0.492 ft	Latch Holder Latch Lock Polarizing Key	20	Gold	Unshielded	0.049 in	1.25 mm	Socket to Plug	Crimp
Harwin Inc. G125-MC22605L4-0300M	2				Latch Lock Polarizing Key	26	Gold	Unshielded	0.049 in	1.25 mm	Plug to Plug	Crimp	0.984 '	11.81 "	300 mm
Harwin Inc. G125-MC20605L4-0450L	2				Latch Lock Polarizing Key	6	Gold	Unshielded	0.049 in	1.25 mm	Plug to Individual Wire Leads	Crimp	17.76 in		450 mm
Harwin Inc. G125-MC21005L4-0300M	2				Latch Lock Polarizing Key	10	Gold	Unshielded	0.049 in	1.25 mm	Plug to Plug	Crimp	0.984 '	11.81 "	300 mm
Harwin Inc. G125-MC21005L4-0150L	2	150 mm	5.91 "	0.492 ft	Latch Lock Polarizing Key	10	Gold	Unshielded	0.049 in	1.25 mm	Plug to Individual Wire Leads	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Cable Assembly Rectangular Plug to Plug 0.984' (300.00mm, 11.81")
