1424490

Active

Phoenix Contact

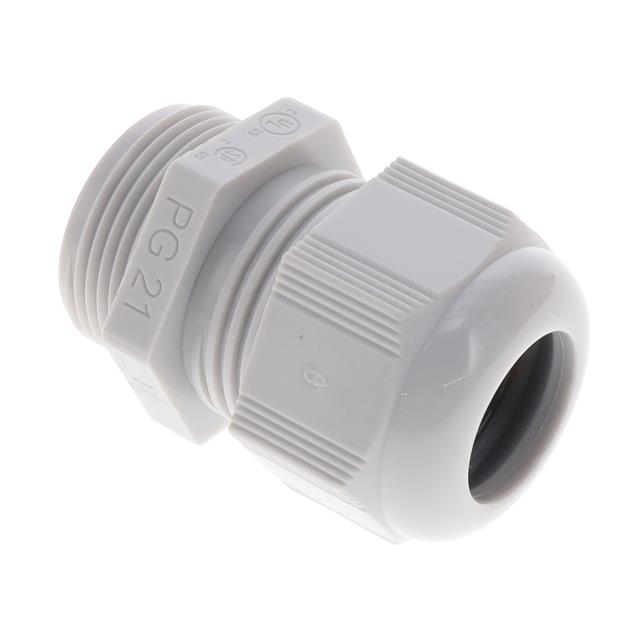

CABLE GLAND 13-18.01MM PG21

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 13-18.01MM PG21

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424490	G-INS-PG21 Series

Color	Gray	Silver, Gray
Includes	Seal	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP66, IP68, IP69, IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Brass, Nickel Plated, Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm	18.01 mm
Outside Cable Diameter (Min)	13 mm	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in	0.512 in
Thread Length	0.433 in	0.283 - 0.433 in
Thread Length	11 mm	7.2 - 11 mm
Thread Size	PG21	PG21
Type	Cable Gland	Cable Gland

CABLE GLND 13-18.01MM PG21 BRASS

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Type	Thread Size	Color	Includes	Material	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1411175	IP66, IP68, IP69	100 °C	-40 °C	0.512 in	13 mm	Cable Gland	PG21	Silver	O-Ring, Seal	Brass, Nickel Plated	7.2 mm	0.283 in	0.709 in	18.01 mm
Phoenix Contact 1424490	IP68 - Dust Tight, Waterproof	100 °C	-40 °C	0.512 in	13 mm	Cable Gland	PG21	Gray	Seal	Polyamide (PA), Nylon	11 mm	0.433 in	0.709 in	18.01 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG21 Gray
