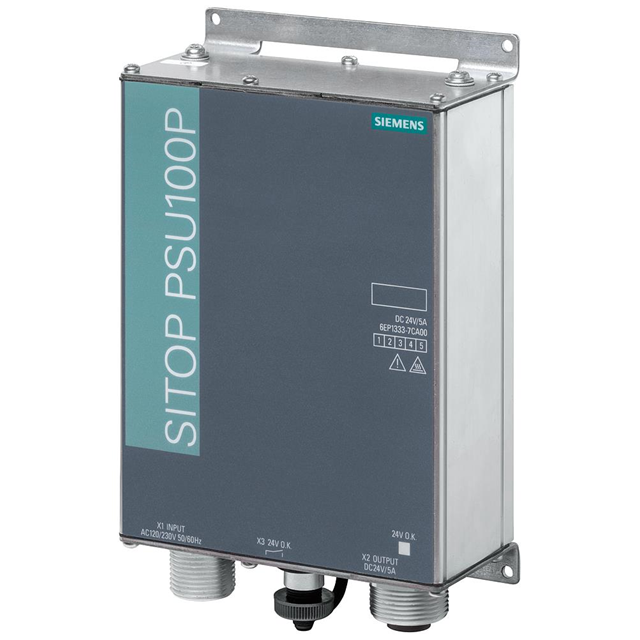

6EP13337CA00
ActiveSiemens
AC/DC CONVERTER 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
6EP13337CA00
ActiveSiemens
AC/DC CONVERTER 24V 120W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EP13337CA00 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | UL, CSA, CE |
| Current - Output 1 | 5 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 60.5 mm |
| Size / Dimension [x] | 2.38 " |
| Size / Dimension [y] | 4.72 in |
| Size / Dimension [y] | 120 mm |
| Size / Dimension [z] | 7.13 " |
| Size / Dimension [z] | 181 mm |
| Standard Number | 60950-1, UL 508 |
| Type | Enclosed |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 652.56 | |
Description
General part information
6EP13337 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
