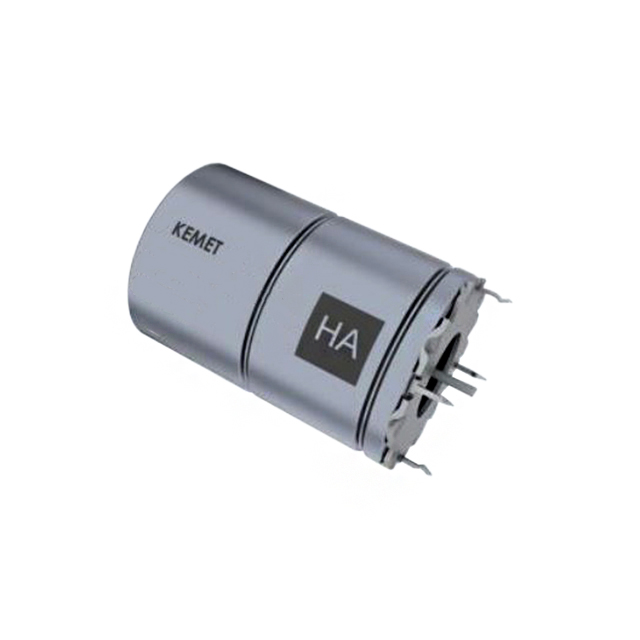

PHH225KLP4110QE4

Active

KEMET

CAP, 1100UF, 40V, ALU ELEC, HYBRID, RAD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP, 1100UF, 40V, ALU ELEC, HYBRID, RAD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PHH225KLP4110QE4

Applications	General Purpose
Capacitance	1100 µF
ESR (Equivalent Series Resistance)	80 mOhm
Features	High Vibration
Height - Seated (Max) [Max]	1.445 in
Height - Seated (Max) [Max]	36.7 mm
Lead Spacing	15.24 mm
Lead Spacing	0.6 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	40.9 A
Ripple Current @ Low Frequency	8.18 A
Size / Dimension [diameter]	0.717 in
Size / Dimension [diameter]	18.2 mm
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Type	Hybrid
Voltage - Rated	40 V

Part	Ripple Current @ High Frequency	Package / Case	ESR (Equivalent Series Resistance)	Voltage - Rated	Applications	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Features	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance [Min]	Tolerance [Max]
KEMET PHH225KLP4110QE4	40.9 A	Radial Can	80 mOhm	40 V	General Purpose	15.24 mm	0.6 in	8.18 A	Through Hole	1.445 in	36.7 mm	Hybrid	High Vibration	1100 µF	125 °C	-40 °C	3000 Hrs	0.717 in	18.2 mm	-10 %	30 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1100 µF 40 V Aluminum - Polymer Capacitors Radial, Can 80mOhm 3000 Hrs @ 125°C
