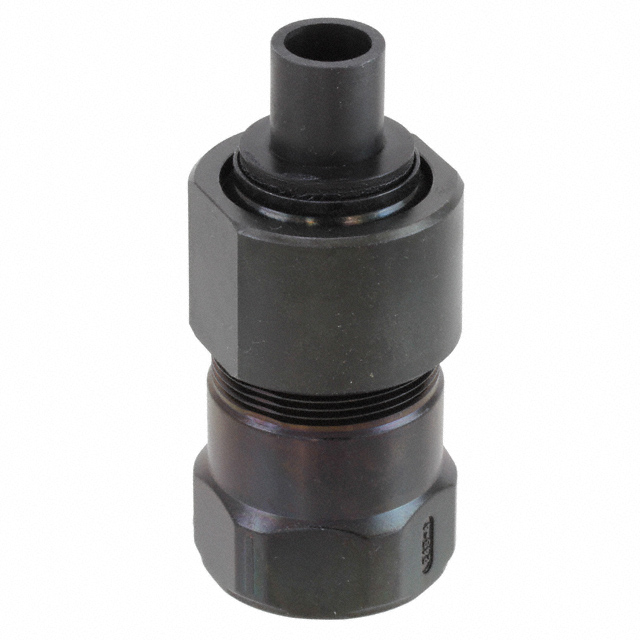

JL05-24EB3B-(13)-R

Obsolete

JAE Electronics

CONN BACKSH SZ24 BLK 1 3/8-18

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN BACKSH SZ24 BLK 1 3/8-18

Technical Specifications

Parameters and characteristics for this part

Specification	JL05-24EB3B-(13)-R

Cable Exit	180 °
Cable Opening [custom]	0.65 in
Cable Opening [custom]	16.5 mm
Color	Black
Diameter - Outside [diameter]	1.614 "
Diameter - Outside [diameter]	41 mm
Features	Sleeve, Bushing
For Use With/Related Products	JL05 Series Connectors
Includes	1 Compression Nut, 1 Sleeve, 2 Screws, 1 O-Ring, 2 Bushings, 1 Backshell
Ingress Protection	Weatherproof
Material	Aluminum Alloy
Plating	Zinc
Shell Size - Insert	24
Thread Size	1 3/8-18 UNEF
Type	Backshell

Part	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Features	Type	Ingress Protection	For Use With/Related Products	Includes	Shell Size - Insert	Color	Plating	Material	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]
JAE Electronics JL05-24EB3B-(13)-R	180 °	0.65 in	16.5 mm	Bushing Sleeve	Backshell	Weatherproof	JL05 Series Connectors	1 Backshell 1 Compression Nut 1 O-Ring 1 Sleeve 2 Bushings 2 Screws	24	Black	Zinc	Aluminum Alloy	1 3/8-18 UNEF	1.614 "	41 mm
JAE Electronics JL05-24EB3B-(17)-R	180 °			Bushing	Backshell	Waterproof	JL05 Series Connectors	1 Backshell 1 Compression Nut 1 O-Ring 1 Sleeve 2 Bushings 2 Screws	24	Black	Zinc	Aluminum Alloy	1 3/8-18 UNEF-2B	1.614 "	41 mm
JAE Electronics JL05-24EB3B-(17)-RK
JAE Electronics JL05-24EB3B-(13)-RK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Black Connector Backshell 1 3/8-18 UNEF 24
