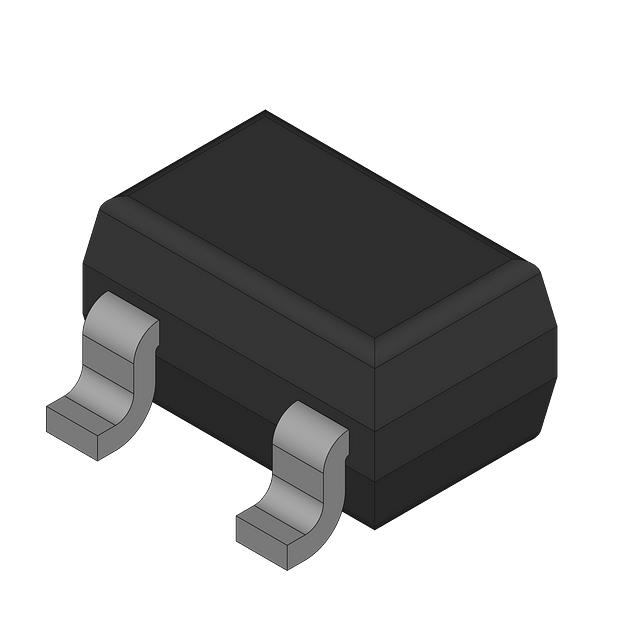

BAS125-04WE6327

Active

Infineon Technologies

DIODE ARR SCHOT 25V 100MA SOT323

Search across all available documentation for this part.

Active

Infineon Technologies

DIODE ARR SCHOT 25V 100MA SOT323

Technical Specifications

Parameters and characteristics for this part

Specification	BAS125-04WE6327

Current - Average Rectified (Io) (per Diode)	100 mA
Current - Reverse Leakage @ Vr	150 nA
Diode Configuration	1 Pair Series Connection
Mounting Type	Surface Mount
Operating Temperature - Junction	150 ¯C
Package / Case	SC-70, SOT-323
Speed	Any Speed
Speed	200 mA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	25 V
Voltage - Forward (Vf) (Max) @ If	950 mV

Part	Operating Temperature - Junction	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Diode Configuration	Speed	Speed	Supplier Device Package
Infineon Technologies BAS125-04WE6327	150 ¯C	100 mA	950 mV	Schottky	150 nA	25 V	Surface Mount	SC-70 SOT-323	1 Pair Series Connection	Any Speed	200 mA
Infineon Technologies BAS12504WE6327HTSA1	150 °C	100 mA	950 mV	Schottky	150 nA	25 V	Surface Mount	SC-70 SOT-323	1 Pair Series Connection	Any Speed	200 mA	PG-SOT323

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2968	$ 0.10

General part information

Diode Array 1 Pair Series Connection 25 V 100mA (DC) Surface Mount SC-70, SOT-323
