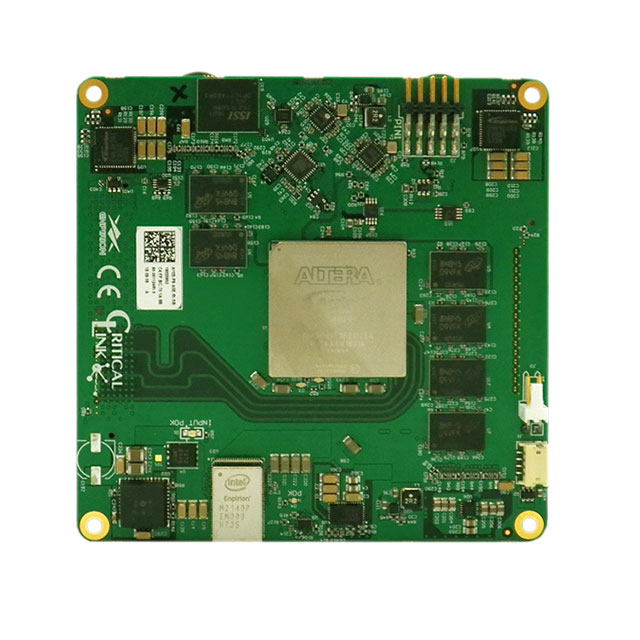

A10S-P9-X5E-RC-SA

Active

Critical Link LLC

ARRIA 10 SOC MODULE, 480KLE, 6GB DDR4, COMMERCIAL TEMP

Search across all available documentation for this part.

Active

Critical Link LLC

ARRIA 10 SOC MODULE, 480KLE, 6GB DDR4, COMMERCIAL TEMP

Technical Specifications

Parameters and characteristics for this part

Part	Module/Board Type	RAM Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Co-Processor	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Speed	Core Processor
Critical Link LLC A10S-P9-X5E-RC-SA	FPGA Core MPU	6 GB	4 "	4 in	101.5 mm	101.5 mm	NEON™ SIMD	70 °C	0 °C	Board-to-Board (BTB)	1.2 GHz	ARM® Cortex®-A9 Arria 10 SX
Critical Link LLC A10S-P9-A5E-RI-SB	FPGA Core MPU	4 GB	4 "	4 in	101.5 mm	101.5 mm	NEON™ SIMD	85 °C	-40 °C	Board-to-Board (BTB)	1.2 GHz	ARM® Cortex®-A9
Critical Link LLC A10S-P9-A5E-RC-SB	FPGA Core MPU	4 GB	4 "	4 in	101.5 mm	101.5 mm	NEON™ SIMD	70 °C	0 °C	Board-to-Board (BTB)	1.2 GHz	ARM® Cortex®-A9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2076.94

General part information

MitySOM Embedded Module ARM® Cortex®-A9, Arria 10 SX NEON™ SIMD 1.2GHz 6GB
