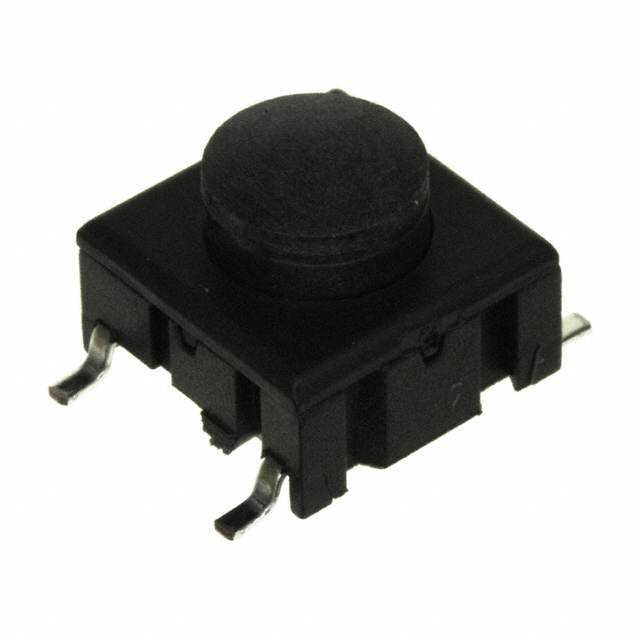

3ESH9-08.0

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMEC Catalog Datasheet

3ESH9-08.0

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsMEC Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.05
		10	$ 3.88
		50	$ 3.29
		100	$ 3.07
		250	$ 2.78
		500	$ 2.58
		1000	$ 2.40
		2500	$ 2.18

Description

General part information

3ESH9 Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

MEC Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3ESH9-08.0	3ESH9 Series

Actuator Height off PCB, Vertical	-	9.5 - 15 mm
Actuator Height off PCB, Vertical [z]	8 mm	8 - 12 mm
Actuator Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	300 gf	300 gf
Operating Temperature [Max]	160 °C	160 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	Gull Wing	Gull Wing

3ESH9 Series

50MA SPST 10000000 TIMES 24V 3N TACTILE SWITCHES ROHS

Part	Actuator Height off PCB, Vertical	Features	Actuator Orientation	Ingress Protection	Mounting Type	Contact Rating @ Voltage	Outline [x]	Outline [y]	Termination Style	Actuator Type	Mechanical Life	Switch Travel	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Circuit	Operating Force	Switch Function	Actuator Material	Actuator Height off PCB, Vertical [z]
MEC Switches 3ESH9-09.5	9.5 mm	Sealed - Flux Protection	Top Actuated	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 24 VDC	10.1 mm	10.1 mm	Gull Wing	Standard	10000000 Cycles	1 mm	-40 °C	160 °C	Non-Illuminated	SPST-NO	300 gf	Off-Mom	Polyphenylene Sulfide (PPS)
MEC Switches 3ESH9-15.0	15 mm	Sealed - Flux Protection	Top Actuated	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 24 VDC	10.1 mm	10.1 mm	Gull Wing	Standard	10000000 Cycles	1 mm	-40 °C	160 °C	Non-Illuminated	SPST-NO	300 gf	Off-Mom	Polyphenylene Sulfide (PPS)
MEC Switches 3ESH9-08.0		Sealed - Flux Protection	Top Actuated	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 24 VDC	10.1 mm	10.1 mm	Gull Wing	Standard	10000000 Cycles	1 mm	-40 °C	160 °C	Non-Illuminated	SPST-NO	300 gf	Off-Mom	Polyphenylene Sulfide (PPS)	8 mm
MEC Switches 3ESH9-10.4	10.4 mm	Sealed - Flux Protection	Top Actuated	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 24 VDC	10.1 mm	10.1 mm	Gull Wing	Standard	10000000 Cycles	1 mm	-40 °C	160 °C	Non-Illuminated	SPST-NO	300 gf	Off-Mom	Polyphenylene Sulfide (PPS)
MEC Switches 3ESH9-12.0		Sealed - Flux Protection	Top Actuated	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 24 VDC	10.1 mm	10.1 mm	Gull Wing	Standard	10000000 Cycles	1 mm	-40 °C	160 °C	Non-Illuminated	SPST-NO	300 gf	Off-Mom	Polyphenylene Sulfide (PPS)	12 mm
