Technical Specifications
Parameters and characteristics for this part

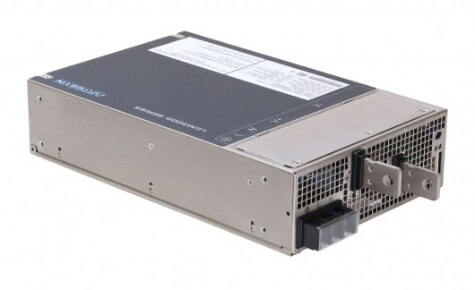

| Specification | LCM30008-T |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, cUL, UL, TUV |
| Current - Output 1 | 166.7 A |
| Efficiency | 90 % |
| Features | PMBus™, Universal Input, Remote Sense, Adjustable Output, PFC, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 3000 W |
| Size / Dimension [x] | 282.5 mm |
| Size / Dimension [x] | 11.12 in |
| Size / Dimension [y] | 4.64 " |
| Size / Dimension [y] | 117.8 mm |
| Size / Dimension [z] | 63.5 mm |
| Size / Dimension [z] | 2.5 in |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Front End |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 128 VDC, 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 18 V |
LCM3000 Series
Artesyn Embedded Technologies
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Type | Efficiency | Mounting Type | Current - Output 1 | Voltage - Output 1 | Features | Number of Outputs | Approval Agency | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Applications | Minimum Load Required | Power (Watts) | Standard Number | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ARTESYN / Advanced Energy | 90 VAC | 264 VAC | Front End | 91 % | Chassis Mount | 20 A | 12 V | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input | 1 | CB | 4000 V | 177.8 mm | 7 " | 4 " | 101.6 mm | 41 mm | 1.61 " | ITE (Commercial) Medical | 310 W | ||||
ARTESYN / Advanced Energy | 90 VAC 128 VDC | 264 VAC 370 VDC | Front End | 90 % | Chassis Mount | 166.7 A | 18 V | Adjustable Output DC Input Capable PFC PMBus™ Remote Sense Universal Input | 1 | CB CE cUL TUV UL | 4000 V | 282.5 mm | 11.12 in | 4.64 " | 2.5 in | ITE (Commercial) Medical | 3000 W | 60601-1 60950-1 62368-1 | 117.8 mm | 63.5 mm | |||
ARTESYN / Advanced Energy | 90 VAC | 264 VAC | Front End | 91 % | Chassis Mount | 12.5 A | 24 V | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input | 1 | CB | 4000 V | 177.8 mm | 7 " | 4 " | 101.6 mm | 41 mm | 1.61 " | ITE (Commercial) Medical | 310 W | ||||
ARTESYN / Advanced Energy | 90 VAC | 264 VAC | Front End | 90 % | Rack Mount | 250 A | 12 V | Adjustable Output PFC PMBus™ Remote Sense Universal Input | 1 | CB CE TUV | 3000 V | 10.9 " 276.9 mm | 7 " 177.8 mm | 63.5 mm | ITE (Commercial) Medical | 3000 W | 60601-1 60950-1 62368-1 | ||||||
ARTESYN / Advanced Energy | 90 VAC | 264 VAC | Front End | 90 % | Rack Mount | 125 A | 24 V | Adjustable Output PFC PMBus™ Remote Sense Universal Input | 1 | CB CE TUV | 3000 V | 10.9 " 276.9 mm | 7 " 177.8 mm | 63.5 mm | ITE (Commercial) Medical | 3000 W | 60601-1 60950-1 62368-1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LCM3000 Series
Artesyn Embedded Technologies
