0805CT-820EGTS

Active

Delta Electronics/Components

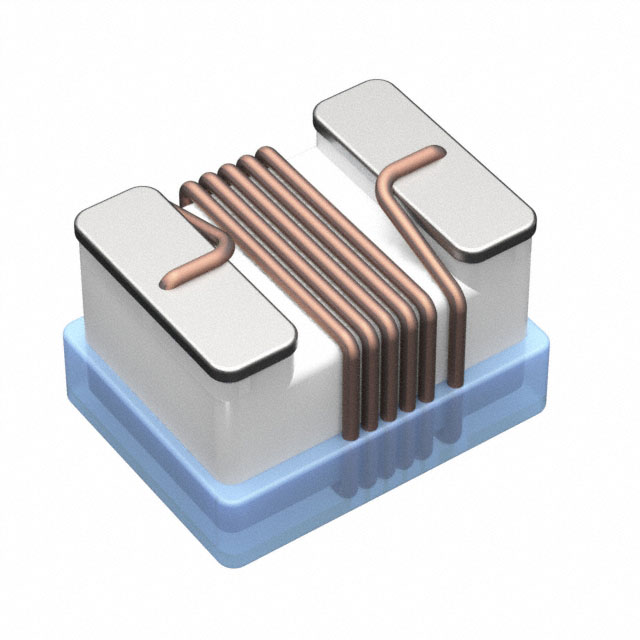

FIXED IND 82NH 500MA 440MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0805CT Datasheet

0805CT-820EGTS

Active

Delta Electronics/Components

FIXED IND 82NH 500MA 440MOHM SMD

Deep-Dive with AI

DocumentsDatasheet 0805CT Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0805CT-820EGTS	0805CT Series

Current Rating (Amps)	0.5 A	0.5 - 800 mA
DC Resistance (DCR)	440 mOhm	2.4 - 800 mOhm
Frequency - Self Resonant	1.5 GHz	1.05 - 65 GHz
Height - Seated (Max) [Max]	0.041 in	0.039 - 0.041 in
Height - Seated (Max) [Max]	1.03 mm	1 - 1.03 mm
Inductance	82 nH	3.9 - 150 nH
Inductance Frequency - Test	150 MHz	7.96 - 250 MHz
Material - Core	Ceramic	Ceramic, Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	0805	0805
Q @ Freq	50, 500 MHz	1 - 500
Shielding	Unshielded	Unshielded
Size / Dimension [x]	2.29 mm	2.29 mm
Size / Dimension [x]	0.09 "	0.09 "
Size / Dimension [y]	0.068 in	0.068 in
Size / Dimension [y]	1.73 mm	1.73 mm
Supplier Device Package	0805	0805
Tolerance	2 %	2 - 10 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

0805CT Series

FIXED IND 3.9NH 800MA 60MOHM SMD

Part	Material - Core	Type	Inductance Frequency - Test	Frequency - Self Resonant	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	DC Resistance (DCR)	Package / Case	Shielding	Q @ Freq	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance
Delta Electronics/Components 0805CT-3N9EJTS	Ceramic	Drum Core, Wirewound	250 MHz	6.1 GHz	Surface Mount	125 °C	-40 °C	5 %	60 mOhm	0805	Unshielded	1 GHz, 60	800 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	3.9 nH
Delta Electronics/Components 0805CT-220EKTS	Ceramic	Drum Core, Wirewound	250 MHz	2.9 GHz	Surface Mount	125 °C	-40 °C	10 %	150 mOhm	0805	Unshielded	50, 500 MHz	800 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	22 nH
Delta Electronics/Components 0805CT-103EJFS	Ferrite	Drum Core, Wirewound	7.96 MHz	31 MHz	Surface Mount	85 °C	-40 °C	5 %	2.7 Ohm	0805	Unshielded	7.96 MHz, 14	400 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.039 "	1 mm	10 µH
Delta Electronics/Components 0805CT-151EGTS	Ceramic	Drum Core, Wirewound	150 MHz	1.05 GHz	Surface Mount	125 °C	-40 °C	2 %	800 mOhm	0805	Unshielded	40, 250 MHz	300 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	150 nH
Delta Electronics/Components 0805CT-180EGTS	Ceramic	Drum Core, Wirewound	250 MHz	3.1 GHz	Surface Mount	125 °C	-40 °C	2 %	130 mOhm	0805	Unshielded	50, 500 MHz	800 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	18 nH
Delta Electronics/Components 0805CT-270EKTS	Ceramic	Drum Core, Wirewound	250 MHz	2.45 GHz	Surface Mount	125 °C	-40 °C	10 %	230 mOhm	0805	Unshielded	50, 500 MHz	600 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	27 nH
Delta Electronics/Components 0805CT-150EKTS	Ceramic	Drum Core, Wirewound	250 MHz	2.95 GHz	Surface Mount	125 °C	-40 °C	10 %	100 mOhm	0805	Unshielded	50, 500 MHz	800 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	15 nH
Delta Electronics/Components 0805CT-4N7EJTS	Ceramic	Drum Core, Wirewound	250 MHz	5.5 GHz	Surface Mount	125 °C	-40 °C	5 %	60 mOhm	0805	Unshielded	1 GHz, 50	800 mA	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	4.7 nH
Delta Electronics/Components 0805CT-680EKTS	Ceramic	Drum Core, Wirewound	200 MHz	1.5 GHz	Surface Mount	125 °C	-40 °C	10 %	400 mOhm	0805	Unshielded	50, 500 MHz	0.5 A	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	68 nH
Delta Electronics/Components 0805CT-820EGTS	Ceramic	Drum Core, Wirewound	150 MHz	1.5 GHz	Surface Mount	125 °C	-40 °C	2 %	440 mOhm	0805	Unshielded	50, 500 MHz	0.5 A	0.068 in	1.73 mm	2.29 mm	0.09 "	0805	0.041 in	1.03 mm	82 nH
