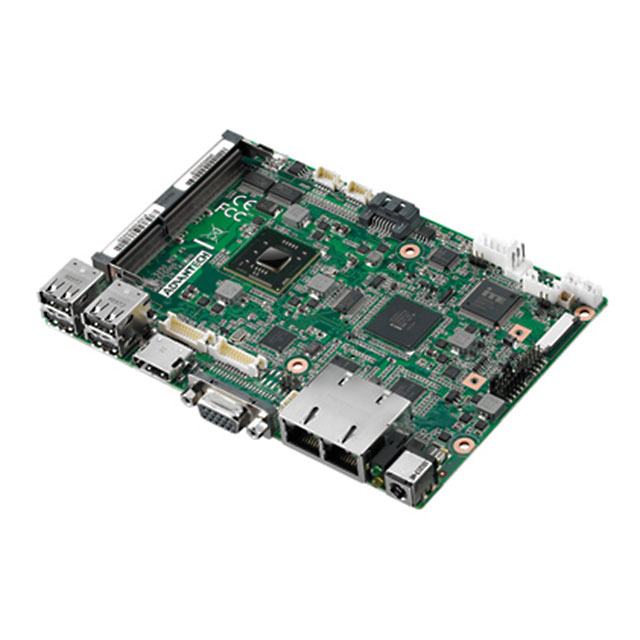

MIO-5250N-S6A1E

Obsolete

Advantech Corp

SBC 1.6GHZ 2 CORE 4GB/0GB RAM

Search across all available documentation for this part.

Obsolete

Advantech Corp

SBC 1.6GHZ 2 CORE 4GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Part	USB	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	Power (Watts)	Speed	Cooling Type	Ethernet	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Storage Interface	RAM Capacity/Installed	Number of Cores	Digital I/O Lines	RS-232 (422, 485)	Video Outputs	Core Processor
Advantech Corp MIO-5250NZ22GS6A1E	USB 2.0 (6)	85 °C	-40 °C	MIOe mPCIe	7.27 W	1.6 GHz	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	101.6 mm	4 "	5.7 "	144.78 mm	CFast mSATA SATA	0 GB 4 GB	2	8	4	HDMI LVDS VGA	Intel Atom N2600
Advantech Corp MIO-5250DZ22GS8A1E	USB 2.0 (6)	85 °C	-40 °C	MIOe mPCIe		1.86 GHz	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	101.6 mm	4 "	5.7 "	144.78 mm	CFast mSATA SATA	0 GB 4 GB	2	8	4	HDMI LVDS VGA	Intel Atom D2550
Advantech Corp MIO-5250N-S6A1E	USB 2.0 (6)	60 °C	0 °C	MIOe mPCIe	7.27 W	1.6 GHz	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	101.6 mm	4 "	5.7 "	144.78 mm	CFast mSATA SATA	0 GB 4 GB	2	8	4	HDMI LVDS VGA	Intel Atom N2600
Advantech Corp MIO-5250D-S8A1E	USB 2.0 (6)	60 °C	0 °C	MIOe mPCIe		1.86 GHz	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	101.6 mm	4 "	5.7 "	144.78 mm	CFast mSATA SATA	0 GB 4 GB	2	8	4	HDMI LVDS VGA	Intel Atom D2550
Advantech Corp MIO-5250NZ-2GS6A1E	USB 2.0 (6)	80 C	-20 C	MIOe mPCIe	7.27 W	1.6 GHz	Heat Sink	10 Mbps 100 Mbps 1000 Mbps	101.6 mm	4 "	5.7 "	144.78 mm	CFast mSATA SATA	0 GB 4 GB	2	8	4	HDMI LVDS VGA	Intel Atom N2600

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 1.6GHz 2 Core 4GB/0GB RAM Intel Atom N2600

Technical documentation and resources
