Q-2802800131.5M

Active

Amphenol Custom Cable

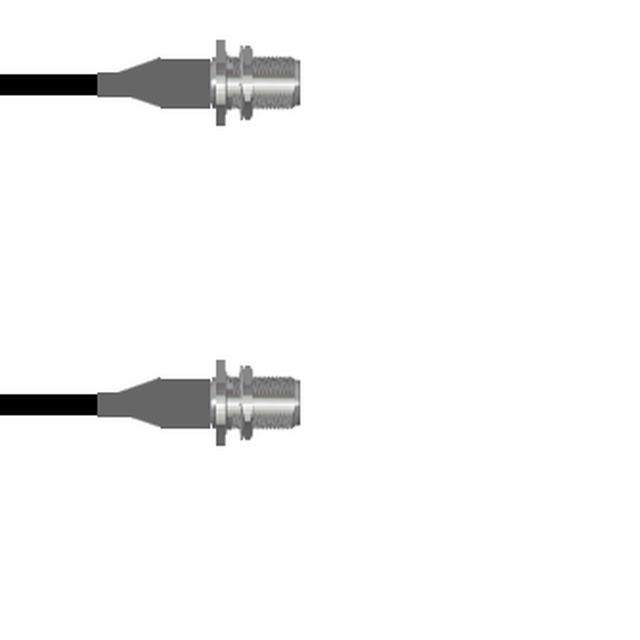

CBL ASSY NTYPE JACK TO JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2802800131.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2802800131.5M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-280280 Series

Part	2nd Connector Mounting Type	Overall Impedance	Length	Length	Length	Features	Color	2nd Connector	1st Connector	2nd Contact Gender	2nd Connector Mounting Feature	1st Connector Mounting Feature	Style	1st Connector Mounting Type	1st Contact Gender	Cable Type	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-2802800131.5M	Panel Mount	50 Ohms	59.1 in	4.9 ft	1.5 m	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013002M	Panel Mount	50 Ohms	78.7 in	6.6 ft	2 m	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013.25M	Panel Mount	50 Ohms				Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz	9.843 "	250 mm
Amphenol Custom Cable Q-2802800132.5M	Panel Mount	50 Ohms	98.4 in	8.2 '	2.5 m	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013048i	Panel Mount	50 Ohms	48 in	4 ft	1200 mm	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013036i	Panel Mount	50 Ohms	36 in		91.44 cm	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013024i	Panel Mount	50 Ohms	24 "		609.6 mm	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013003i	Panel Mount	50 Ohms	3 in		76.2 mm	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013012i	Panel Mount	50 Ohms	12 "		304.8 mm	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz
Amphenol Custom Cable Q-280280013060i	Panel Mount	50 Ohms	5 '	5 ft	1.5 m	Shielded	Black	N-Type Jack	N-Type Jack	Female	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	N-Type to N-Type	Panel Mount	Female	LMR 400	6000 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 205.04
		25	$ 191.46
		50	$ 177.88
		100	$ 166.24
		250	$ 156.53

Description

General part information

Q-280280 Series

Cable Assembly Coaxial N-Type to N-Type LMR 400 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
