R112165000

Active

Radiall USA, Inc.

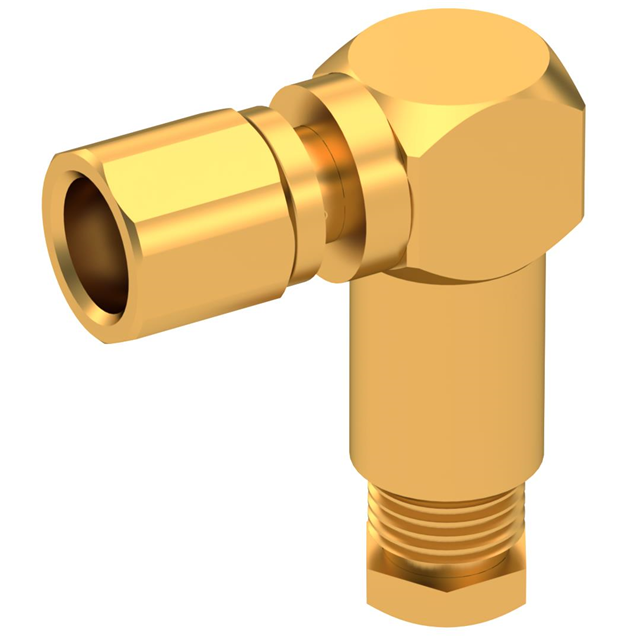

SMC F RA 2.6/50+75

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F RA 2.6/50+75

Technical Specifications

Parameters and characteristics for this part

Specification	R112165000

Body Finish	Gold
Body Material	Brass
Cable Group	179, RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Connector Style	Shield Termination	Center Contact Material	Center Contact Plating	Voltage Rating	Frequency - Max [Max]	Cable Group	Cable Group	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Housing Color	Number of Ports	Body Finish	Dielectric Material	Impedance	Mounting Type	Body Material	Connector Type	Includes	Insertion Loss
Radiall USA, Inc. R112163000	SMC	Clamp	Beryllium Copper	Gold	250 VDC	10 GHz	196	RG-178	500	100 °C	-55 °C	Solder	Gold	1	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Female Socket Plug
Radiall USA, Inc. R112165000	SMC	Clamp	Beryllium Copper	Gold	335 V	10 GHz		179 316 RG-174	500	100 °C	-55 °C	Solder	Gold	1	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Female Socket Plug	1 Connector 1 Ferrule	0.5 dB
