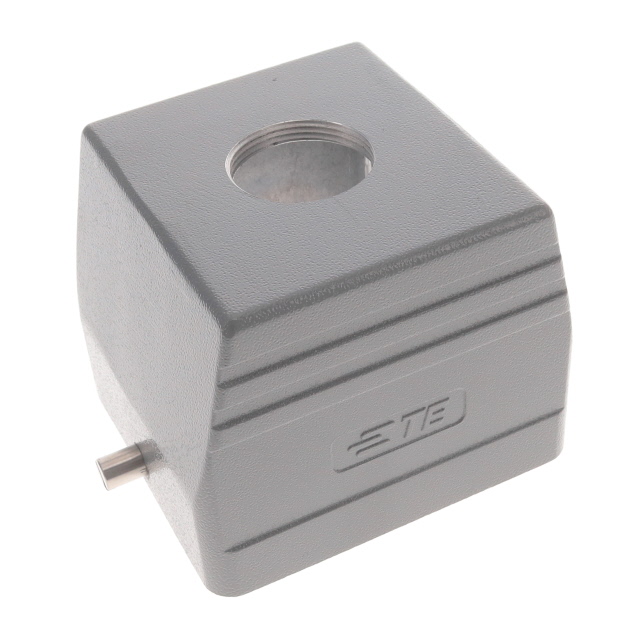

H32B-TG-RO-M32
ActiveTE Connectivity AMP Connectors
H32B-TG-RO-M32
Deep-Dive with AI
Search across all available documentation for this part.
H32B-TG-RO-M32
ActiveTE Connectivity AMP Connectors
H32B-TG-RO-M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H32B-TG-RO-M32 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H32B |
| Size / Dimension [x] | 3.701 " |
| Size / Dimension [x] | 94 mm |
| Size / Dimension [y] | 82.5 mm |
| Size / Dimension [y] | 3.248 in |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Style | Top Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.30 | |
| 10 | $ 11.07 | |||
| 25 | $ 10.77 | |||
| 50 | $ 10.36 | |||
T1320320132 Series
H32B-TG-RO-M32
| Part | Housing Finish | Ingress Protection | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Lock Location | Housing Material | Style | Thread Size | Housing Color | Connector Type | Size | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H32B-TG-RO-M32 | Powder Coated | IP65 - Dust Tight, Water Resistant | 82.5 mm | 3.701 " | 76 mm | 3.248 in | 2.992 in | 94 mm | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Top Entry | M32 | Gray | Hood | H32B | 125 °C | -40 °C |
Description
General part information
T1320320132 Series
Hood Connector Top Entry M32 H32B IP65 - Dust Tight, Water Resistant
