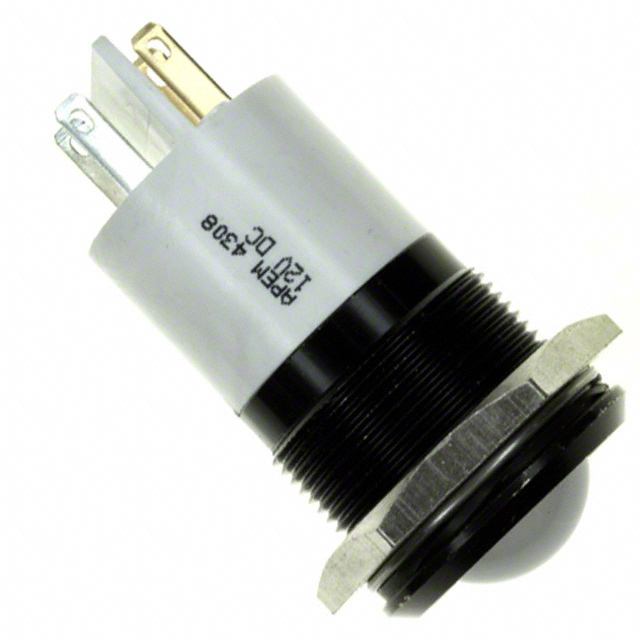

Q22P1BZZRYG12E
ActiveAPEM
INDICATOR 12V 22MM PROM R/Y/G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q22P1BZZRYG12E
ActiveAPEM
INDICATOR 12V 22MM PROM R/Y/G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q22P1BZZRYG12E |
|---|---|
| Current | 40 mA, 40 mA, 40 mA |
| Ingress Protection | IP67 |
| Lamp Color | Green, Yellow, Red |
| Lens Size [diameter] | 18 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 80 mcd, 50 mcd, 50 mcd |
| Panel Cutout Dimensions | 22.1 mm |
| Panel Cutout Dimensions | 0.87 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V, 12 V, 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 28.53 | |
Description
General part information
Q22P1BZZRYG Series
LED Panel Indicator Green, Red, Yellow Diffused 100° 12V Green, 12V Red, 12V Yellow 40mA Green, 40mA Red, 40mA Yellow Quick Connect - 0.110" (2.8mm)
