8620 060500

Active

Belden Inc.

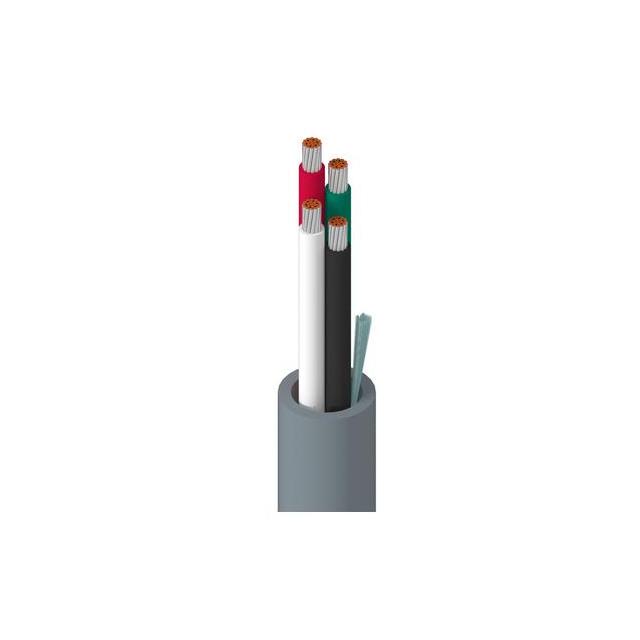

CABLE 4COND 16AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 16AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8620 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	0.376 in
Jacket (Insulation) Diameter [diameter]	9.55 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	600 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Insulation	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Voltage	Length	Length
Belden Inc. 8620 060100	19 Strands	29 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	Chrome	1.067 mm	0.042 in	16 AWG	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Multi-Conductor	0.376 in	9.55 mm	Copper Tinned	Audio Control Instrumentation
Belden Inc. 8620 060500	19 Strands	29 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	Chrome	1.067 mm	0.042 in	16 AWG	Poly-Vinyl Chloride (PVC)	152.4 m	500 '	Multi-Conductor	0.376 in	9.55 mm	Copper Tinned	Audio Control Instrumentation	600 V
Belden Inc. 8620 0601000	19 Strands	29 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	Chrome	1.067 mm	0.042 in	16 AWG	Poly-Vinyl Chloride (PVC)			Multi-Conductor	0.376 in	9.55 mm	Copper Tinned	Audio Control Instrumentation	600 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.97

General part information

4 Conductor Multi-Conductor Cable Chrome 16 AWG 500.0' (152.4m)
