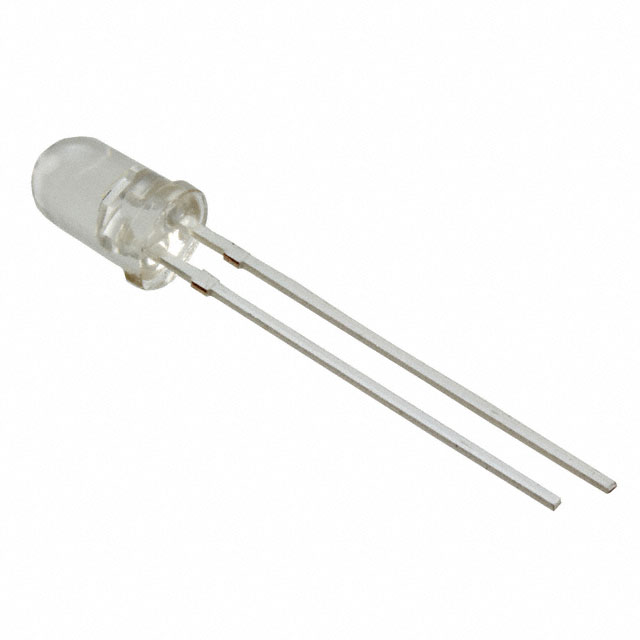

BPW96C

Active

Vishay Semiconductor Opto Division

PHOTOTRANSISTOR 450 TO 1080 NM

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

PHOTOTRANSISTOR 450 TO 1080 NM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPW96C	BPW96 Series

Current - Collector (Ic) (Max) [Max]	50 mA	50 mA
Current - Dark (Id) (Max) [Max]	200 nA	200 nA
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	T 1 3/4, Radial	T 1 3/4, Radial
Package / Case [diameter]	5 mm	5 mm
Power - Max [Max]	150 mW	150 mW
Viewing Angle [custom]	40 °	40 °
Voltage - Collector Emitter Breakdown (Max) [Max]	70 V	70 V
Wavelength	850 nm	850 nm

SENSOR PHOTO 850NM TOP VIEW RAD

Part	Wavelength	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [diameter]	Package / Case	Orientation	Current - Dark (Id) (Max) [Max]	Viewing Angle [custom]
Vishay Semiconductor Opto Division BPW96	850 nm	150 mW	50 mA	Through Hole	70 V	100 °C	-40 °C	5 mm	Radial, T 1 3/4	Top View	200 nA	40 °
Vishay Semiconductor Opto Division BPW96C	850 nm	150 mW	50 mA	Through Hole	70 V	100 °C	-40 °C	5 mm	Radial, T 1 3/4	Top View	200 nA	40 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 850nm Top View Radial, 5mm Dia (T 1 3/4)
