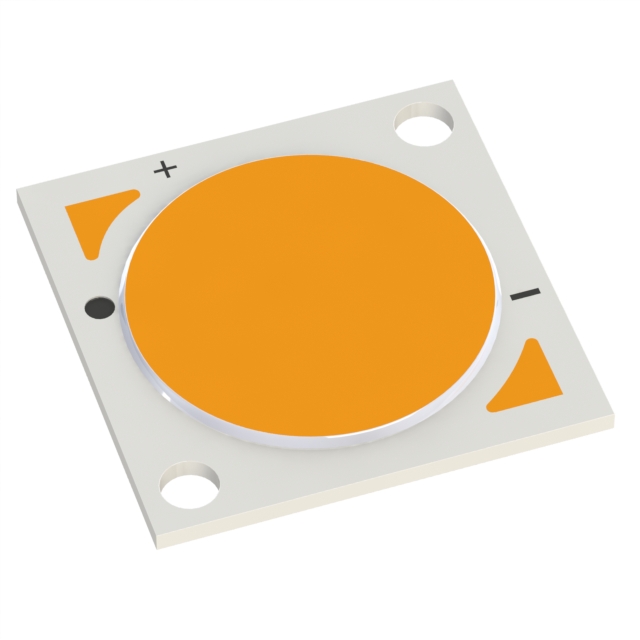

CHM-14-30-90-36-AA10-F3-3

Luminus Devices Inc.

LED COB CHM14 GEN2 WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CHM-14-30-90-36-AA10-F3-3

Luminus Devices Inc.

LED COB CHM14 GEN2 WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHM-14-30-90-36-AA10-F3-3	CHM-14 Series

CCT (K)	3000 K	2700 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	White, Warm, Neutral, Cool
Configuration	Square	Square, Rectangle
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	1.44 A	1.09 - 545 A
Current - Test	720 mA	1.68 - 720 mA
Height [z]	1.37 mm	1.37 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	13.5 mm	13.46 - 13.5 mm
Lumens/Watt @ Current - Test	106 lm/W	80 - 147 lm/W
Luminous Flux @ Current/Temperature	2700 lm	2020 - 8765 lm
Size / Dimension	-	15.01 - 28 mm
Size / Dimension	-	15.01 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	35.5 V	34.5 - 37.1 V

CHM-14 Series

LED COB CHM14 WARM WHT SQ 3000K

Part	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Current - Max [Max]	Configuration	Current - Test	Type	Viewing Angle	Color	Lens Type	Luminous Flux @ Current/Temperature	Temperature - Test	Height [z]	Light Emitting Surface (LES) [diameter]
Luminus Devices Inc. CHM-14-30-90-36-AC00-F2-3	90	98 lm/W	35 V	19 mm	19 mm	3000 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Warm, White	Flat	2470 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-40-80-36-AA00-F2-3	80	119 lm/W	35 V			4000 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Neutral, White	Flat	3000 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-30-90-36-AC12-F3-3	90	105 lm/W	34.5 V	19 mm	19 mm	3000 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Warm, White	Flat	2610 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-35-90-36-AC12-F3-3	90	129 lm/W	34.5 V	19 mm	19 mm	3500 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Warm, White	Flat	3210 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-30-95-36-AA10-F3-3	95	97 lm/W	35.5 V			3000 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Warm, White	Flat	2480 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-35-80-36-AC00-F2-3	80	119 lm/W	35 V	19 mm	19 mm	3500 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Warm, White	Flat	3000 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-40-95-36-XH20-F3-3	95	104 lm/W	37.1 V	28 mm	28 mm	4000 K	2.625 A	Square	720 mA	Chip On Board (COB)	120 °	Neutral, White	Flat	5985 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-27-80-36-AC10-F3-3	80	117 lm/W	35.5 V	19 mm	19 mm	2700 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Warm, White	Flat	2980 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-40-80-36-AA10-F3-3	80	130 lm/W	35.5 V			4000 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Neutral, White	Flat	3330 lm	85 °C	1.37 mm	13.5 mm
Luminus Devices Inc. CHM-14-30-90-36-AA10-F3-3	90	106 lm/W	35.5 V			3000 K	1.44 A	Square	720 mA	Chip On Board (COB)	120 °	Warm, White	Flat	2700 lm	85 °C	1.37 mm	13.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1125	$ 4.52

Description

General part information

CHM-14 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CHM-14 Gen2 White, Warm Square
