Q-0D0340003.75M

Active

Amphenol Custom Cable

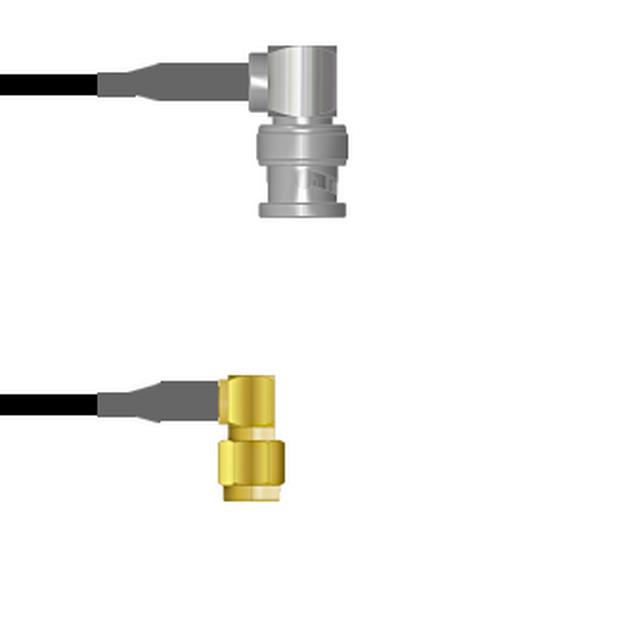

CBL ASSY BNC-SMA PLUG-PLG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D0340003.75M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D0340003.75M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0D0340 Series

Part	Frequency - Max [Max]	Color	Style	1st Contact Gender	1st Connector	Overall Impedance	1st Connector Mounting Type	Features	Cable Type	Length	Length	Length	2nd Connector Mounting Type	2nd Contact Gender	2nd Connector
Amphenol Custom Cable Q-0D0340005084i	4 GHz	Copper	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-316	84 in	2.1 m	7 ft	Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D03400052.5M	4 GHz	Copper	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-316	98.4 in	2.5 m	8.2 '	Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D0340003012i	4 GHz	Black	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-174	12 "	304.8 mm		Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D0340005060i	4 GHz	Copper	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-316	5 '	1.5 m	5 ft	Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D0340005072i	4 GHz	Copper	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-316	72 in	1.8 m	6 ft	Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D03400032.5M	4 GHz	Black	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-174	98.4 in	2.5 m	8.2 '	Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D0340005001M	4 GHz	Copper	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-316	39.4 in	1 m	3.3 ft	Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D0340005036i	4 GHz	Copper	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-316	36 in	91.44 cm		Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D0340003024i	4 GHz	Black	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-174	24 "	609.6 mm		Free Hanging (In-Line)	Male	SMA Plug Right Angle
Amphenol Custom Cable Q-0D0340003.75M	4 GHz	Black	BNC to SMA	Male	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Shielded	RG-174	29.53 "	750 mm		Free Hanging (In-Line)	Male	SMA Plug Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.57
		25	$ 98.61
		50	$ 96.64
		100	$ 94.67
		250	$ 92.71

Description

General part information

Q-0D0340 Series

Cable Assembly Coaxial BNC to SMA RG-174 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
