A221T34V22

Active

Nicomatic

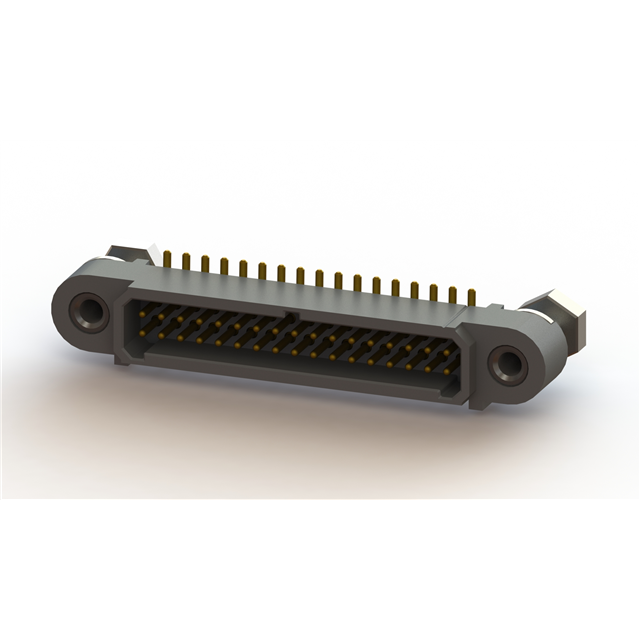

MALE 34POS STRAIGHT SMT 1MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 34POS STRAIGHT SMT 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221T34V22

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

MALE 34POS STRAIGHT SMT 1MM

Part	Number of Rows	Contact Type	Voltage Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Mounting Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Termination	Material Flammability Rating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Contact Finish - Mating	Number of Positions	Style	Contact Material	Insulation Height [custom]	Insulation Height [custom]
Nicomatic A221T34V22	2	Male Pin	600 VAC	Liquid Crystal Polymer (LCP)	-65 ░C	200 °C	Mating Flange, Mounting Flange, Mounting Hardware	Gold	0.039 in	1 mm	Circular	0.15 µm	5.9 µin	All	Surface Mount	Black	0.15 µm	5.9 µin	Header	Solder	UL94 V-0	Shrouded - 4 Wall	0.039 "	1 mm	2.5 A	Gold	34	Board to Board, Cable	Copper Alloy	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 34 position 0.039" (1.00mm)
