1424476

Active

Phoenix Contact

CABLE GLAND 10-14MM M20 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-14MM M20 POLYAMID

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76

General part information

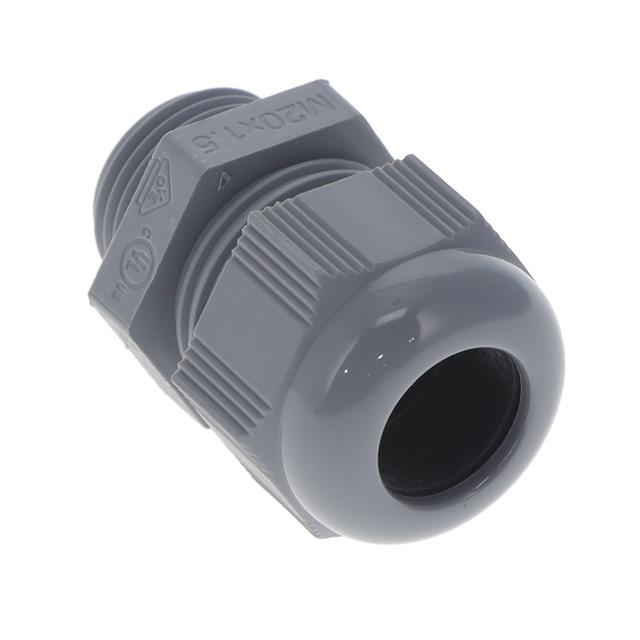

Cable Gland Polyamide (PA), Nylon M20x1.5 Gray

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1424476	G-INS-M20 Series

Color	Gray	Black, Gray, Light Gray
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	0.472 in
Outside Cable Diameter (Max)	-	12 mm
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.236 - 0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	6 - 10 mm
Thread Length	10 mm	10 mm
Thread Length	0.394 in	0.394 in
Thread Size	M20x1.5	M20x1.5, M20
Type	Cable Gland	Cable Gland

CABLE GLAND 10-14MM M20 POLYAMID

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Thread Length	Thread Length	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1424481	0.394 in	10 mm	IP66/IP68	Cable Gland	14 mm	0.551 "	Black	10 mm	0.394 in	Seal	100 °C	-40 °C	M20x1.5	Polyamide (PA), Nylon
Phoenix Contact 1424471	0.394 in	10 mm	IP66/IP68	Cable Gland	14 mm	0.551 "	Gray	10 mm	0.394 in	Seal	100 °C	-40 °C	M20x1.5	Polyamide (PA), Nylon
Phoenix Contact 1414568	0.236 in	6 mm	IP66/IP68	Cable Gland			Light Gray	10 mm	0.394 in	Seal	100 °C	-40 °C	M20	Polyamide (PA), Nylon	0.472 in	12 mm
Phoenix Contact 1424476	0.394 in	10 mm	IP66/IP68	Cable Gland	14 mm	0.551 "	Gray	10 mm	0.394 in	Seal	100 °C	-40 °C	M20x1.5	Polyamide (PA), Nylon
