1424471

Active

Phoenix Contact

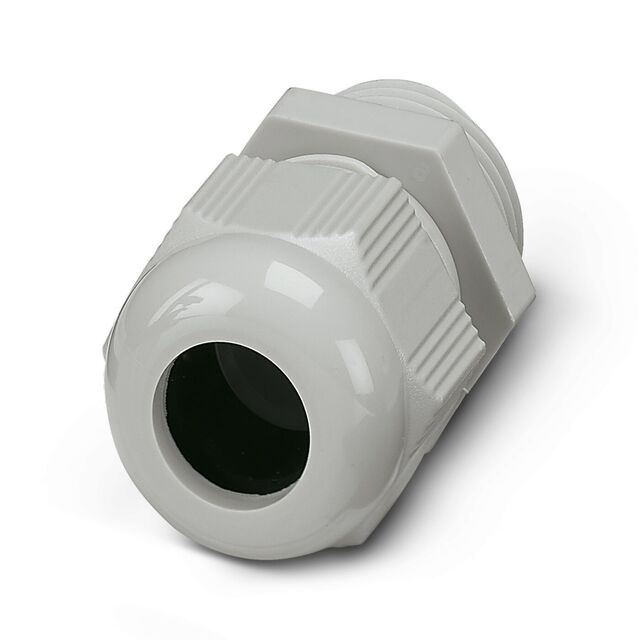

CABLE GLAND 10-14MM M20 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-14MM M20 POLYAMID

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424471	G-INS-M20 Series

Color	Gray	Black, Gray, Light Gray
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	0.472 in
Outside Cable Diameter (Max)	-	12 mm
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.236 - 0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	6 - 10 mm
Thread Length	10 mm	10 mm
Thread Length	0.394 in	0.394 in
Thread Size	M20x1.5	M20x1.5, M20
Type	Cable Gland	Cable Gland

CABLE GLAND 10-14MM M20 POLYAMID

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Thread Length	Thread Length	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1424481	0.394 in	10 mm	IP66/IP68	Cable Gland	14 mm	0.551 "	Black	10 mm	0.394 in	Seal	100 °C	-40 °C	M20x1.5	Polyamide (PA), Nylon
Phoenix Contact 1424471	0.394 in	10 mm	IP66/IP68	Cable Gland	14 mm	0.551 "	Gray	10 mm	0.394 in	Seal	100 °C	-40 °C	M20x1.5	Polyamide (PA), Nylon
Phoenix Contact 1414568	0.236 in	6 mm	IP66/IP68	Cable Gland			Light Gray	10 mm	0.394 in	Seal	100 °C	-40 °C	M20	Polyamide (PA), Nylon	0.472 in	12 mm
Phoenix Contact 1424476	0.394 in	10 mm	IP66/IP68	Cable Gland	14 mm	0.551 "	Gray	10 mm	0.394 in	Seal	100 °C	-40 °C	M20x1.5	Polyamide (PA), Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M20x1.5 Gray
