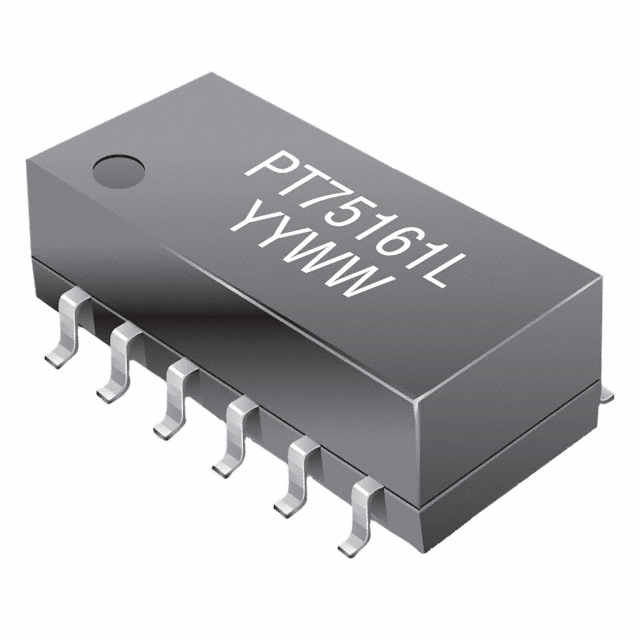

PT75161EL
ObsoleteBourns Inc.
TRANSFORMER 10MH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT75161EL
ObsoleteBourns Inc.
TRANSFORMER 10MH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT75161EL |
|---|---|
| Height - Seated (Max) [Max] | 0.34 in |
| Height - Seated (Max) [Max] | 8.63 mm |
| Inductance | 10 mH |
| Mounting Type | Surface Mount |
| Size / Dimension [x] | 0.675 in |
| Size / Dimension [x] | 17.14 mm |
| Size / Dimension [y] | 10.16 mm |
| Size / Dimension [y] | 0.4 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PT7516 Series
TRANSFORMER 10MH SMD
