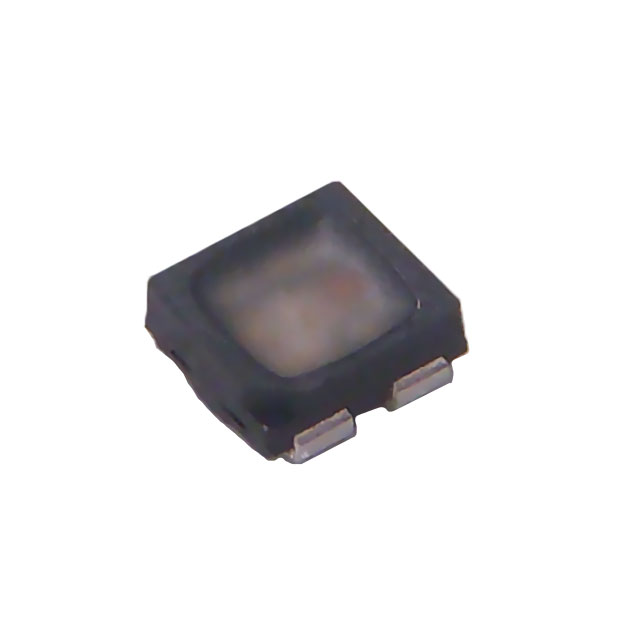

CLMVC-FKA-CA1E1L81BB7C3C3

Active

Cree LED

LED RGB CLEAR 4PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLMVC-FKA-CA1E1L81BB7C3C3

Active

Cree LED

LED RGB CLEAR 4PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLMVC-FKA-CA1E1L81BB7C3C3	CLMVC Series

Color	Red, Green, Blue	Red, Green, Blue
Configuration	Common Anode	Common Anode
Current - Test [custom]	10 mA	10 mA
Current - Test [custom]	20 mA	15 - 20 mA
Current - Test [custom]	10 mA	10 mA
Height (Max) [Max] [z]	1 mm	1 mm
Lens Color	Colorless	Colorless
Lens Size	-	1.5 mm
Lens Style	Square with Flat Top	Square with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	-	151.5 - 675 mcd
Millicandela Rating [custom]	365 mcd	337 - 457.5 mcd
Millicandela Rating [custom]	92 mcd	92 - 164 mcd
Millicandela Rating [custom]	458 mcd	420 - 730 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-SMD, J-Lead	4-SMD, J-Lead
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [y]	2 mm	2 mm
Supplier Device Package	4-PLCC	4-PLCC
Voltage - Forward (Vf) (Typ) [custom]	3 V	3 - 3.1 V
Voltage - Forward (Vf) (Typ) [custom]	3 V	3 - 3.1 V
Voltage - Forward (Vf) (Typ) [custom]	2 V	2 - 2.1 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm	465 - 622 nm

CLMVC Series

LED TRI-COLOR BLUE/GREEN/RED 4-PIN PLCC T/R

Part	Configuration	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Mounting Type	Lens Style	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [y]	Size / Dimension [x]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Transparency	Lens Color	Supplier Device Package	Color	Lens Size	Millicandela Rating
Cree LED CLMVC-FKA-CLBDGL7LBB79353	Common Anode	4-SMD, J-Lead	420 mcd	337 mcd	98 mcd	470 nm, 530 nm, 622 nm	Surface Mount	Square with Flat Top	1 mm	3 V	3 V	2 V	2 mm	2 mm	10 mA	20 mA	10 mA	Clear	Colorless	4-PLCC	Blue, Green, Red
Cree LED CLMVC-FKC-CH1K1781BB7D3S3	Common Anode	4-SMD, J-Lead	730 mcd	457.5 mcd	164 mcd	465 nm, 530 nm, 622 nm	Surface Mount	Square with Flat Top	1 mm	3.1 V	3.1 V	2.1 V	2 mm	2 mm	10 mA	15 mA	10 mA			4-PLCC	Blue, Green, Red	1.5 mm
Cree LED CLMVC-FKC-CG1J1561BB7D3S3	Common Anode	4-SMD, J-Lead				465 nm, 530 nm, 622 nm	Surface Mount	Square with Flat Top	1 mm	3.1 V	3.1 V	2.1 V	2 mm	2 mm	10 mA	15 mA	10 mA			4-PLCC	Blue, Green, Red	1.5 mm	151.5 mcd, 420 mcd, 675 mcd
Cree LED CLMVC-FKA-CA1E1L81BB7C3C3	Common Anode	4-SMD, J-Lead	458 mcd	365 mcd	92 mcd	470 nm, 530 nm, 622 nm	Surface Mount	Square with Flat Top	1 mm	3 V	3 V	2 V	2 mm	2 mm	10 mA	20 mA	10 mA	Clear	Colorless	4-PLCC	Blue, Green, Red
Cree LED CLMVC-FKC-CGJJM569ABB7A343	Common Anode	4-SMD, J-Lead				465 nm, 530 nm, 622 nm	Surface Mount	Square with Flat Top	1 mm	3.1 V	3.1 V	2.1 V	2 mm	2 mm	10 mA	15 mA	10 mA			4-PLCC	Blue, Green, Red	1.5 mm	151.5 mcd, 420 mcd, 675 mcd
Cree LED CLMVC-FKA-MF1G1L1BB7D3C3	Common Anode	4-SMD, J-Lead				470 nm, 530 nm, 622 nm	Surface Mount	Square with Flat Top	1 mm	3 V	3 V	2 V	2 mm	2 mm	10 mA	20 mA	10 mA	Clear	Colorless	4-PLCC	Blue, Green, Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.24
		10	$ 0.22
		100	$ 0.21
		1000	$ 0.18
	Digi-Reel®	1	$ 0.24
		10	$ 0.22
		100	$ 0.21
		1000	$ 0.18
	Tape & Reel (TR)	12800	$ 0.18

Description

General part information

CLMVC Series

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3V Green, 3V Blue 4-SMD, J-Lead
