M50-3102545

Active

Harwin Inc.

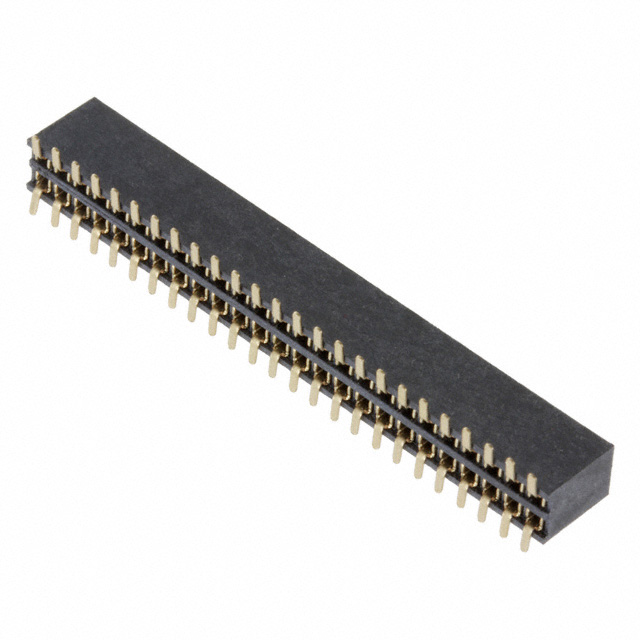

BOARD-TO-BOARD CONNECTOR, VERTICAL, ARCHER M50 SERIES, SURFACE MOUNT, RECEPTACLE, 50, 1.27 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3530842 M50,M52 Series Spec Sheet +6

M50-3102545

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, VERTICAL, ARCHER M50 SERIES, SURFACE MOUNT, RECEPTACLE, 50, 1.27 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3530842 M50,M52 Series Spec Sheet +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3102545

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	6.18 mm, 5.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

M50-310 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Mounting Type	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Rows	Voltage Rating	Termination	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Mated Stacking Heights	Material Flammability Rating	Insulation Color	Contact Finish Thickness - Mating	Applications	Contact Type	Fastening Type	Style	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Post	Features
Harwin Inc. M50-3101445	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Surface Mount	28	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square
Harwin Inc. M50-3102045	-40 °C	105 ░C	Nylon 6T Polyamide (PA6T)	Surface Mount	40	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square	Gold	Flash
Harwin Inc. M50-3100545	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Surface Mount	10	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square
Harwin Inc. M50-3100945	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Surface Mount	18	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square
Harwin Inc. M50-3100645	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Surface Mount	12	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square
Harwin Inc. M50-3101045	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Surface Mount	20	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square
Harwin Inc. M50-3101245	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Surface Mount	24	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square
Harwin Inc. M50-3100545R	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Surface Mount	10	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square			Pick and Place
Harwin Inc. M50-3102545	-40 °C	105 ░C	Nylon 6T Polyamide (PA6T)	Surface Mount	50	All	Gold	0.05 in	1.27 mm	Receptacle	2	250 VDC	Solder	0.05 in	1.27 mm	Phosphor Bronze	4.6 mm	0.181 in	5.5 mm 6.18 mm	UL94 V-0	Black	Flash	General Purpose Medical Telecommunications	Female Socket	Push-Pull	Board to Board Cable	Square	Gold	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.47
		18	$ 4.95
		108	$ 4.33
		504	$ 4.01
Newark	Each	1	$ 7.07
		10	$ 6.27
		25	$ 5.47
		50	$ 5.20
		100	$ 4.93
		250	$ 4.66
		500	$ 4.37
		1000	$ 4.07

Description

General part information

M50-310 Series

50 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
