T4110501021-000

Active

TE Connectivity Raychem Cable Protection

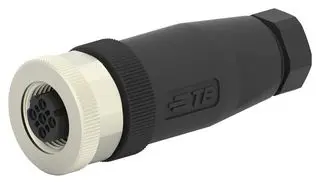

CONN PLUG FMALE 2POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIndustrial M8 & M12 Series Circular connector M12 connection application specification

T4110501021-000

Active

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 2POS GOLD SCREW

Deep-Dive with AI

DocumentsIndustrial M8 & M12 Series Circular connector M12 connection application specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4110501021-000

Applications	Industrial
Backshell Material, Plating	Glass Filled, Polybutylene Terephthalate (PBT)
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Zinc Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-2
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VDC

T41105 Series

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Primary Material	Features	Termination	Connector Type	Orientation	Insert Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Current Rating (Amps)	Shell Finish	Shell Material	Shell Size - Insert	Contact Finish - Mating	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Ingress Protection	Shielding	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions
TE Connectivity Raychem Cable Protection T4110512052-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)	8 mm	6 mm	0.315 in	0.236 in	4 A	Nickel	Brass	M12-5	Silver	Brass Nickel	2.03 µm	80 µin	Bronze	IP67 - Dust Tight Waterproof	Shielded	60 VDC
TE Connectivity Raychem Cable Protection T4110511052-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)					4 A	Nickel	Brass	M12-5	Silver	Brass Nickel	2.03 µm	80 µin	Bronze	IP67 - Dust Tight Waterproof	Shielded	60 VDC	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4110512032-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)	8 mm	6 mm	0.315 in	0.236 in	4 A	Nickel	Brass	M12-3	Silver	Brass Nickel	2.03 µm	80 µin	Bronze	IP67 - Dust Tight Waterproof	Shielded	250 VDC
TE Connectivity Raychem Cable Protection T4110511022-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)					4 A	Nickel	Brass	M12-2	Silver	Brass Nickel	2.03 µm	80 µin	Bronze	IP67 - Dust Tight Waterproof	Shielded	250 VDC	4 mm 6 mm	0.157 in 0.236 in	2
TE Connectivity Raychem Cable Protection T4110501021-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)					4 A	Nickel	Brass	M12-2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	0.076 µm	3 µin	Zinc Alloy	IP67 - Dust Tight Waterproof	Unshielded	250 VDC	4 mm 6 mm	0.157 in 0.236 in	2
TE Connectivity Raychem Cable Protection T4110511031-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)					4 A	Nickel	Brass	M12-3	Gold	Brass Nickel	0.076 µm	3 µin	Bronze	IP67 - Dust Tight Waterproof	Shielded	250 VDC	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4110512041-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)	8 mm	6 mm	0.315 in	0.236 in	4 A	Nickel	Brass	M12-4	Gold	Brass Nickel	0.076 µm	3 µin	Zinc Alloy	IP67 - Dust Tight Waterproof	Shielded	250 VDC			4
TE Connectivity Raychem Cable Protection T4110511041-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)					4 A	Nickel	Brass	M12-4	Gold	Brass Nickel	0.076 µm	3 µin	Zinc Alloy	IP67 - Dust Tight Waterproof	Shielded	250 VDC	4 mm 6 mm	0.157 in 0.236 in	4
TE Connectivity Raychem Cable Protection T4110501051-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)					4 A	Nickel	Brass	M12-5	Gold	Glass Filled Polybutylene Terephthalate (PBT)	0.076 µm	3 µin	Zinc Alloy	IP67 - Dust Tight Waterproof	Unshielded	60 VDC	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4110501031-000	Industrial	85 °C	-40 °C	Silver	Free Hanging (In-Line)	Metal	Backshell Coupling Nut	Screw	Female Sockets Plug	D	Nylon Polyamide (PA)					4 A	Nickel	Brass	M12-3	Gold	Glass Filled Polybutylene Terephthalate (PBT)	0.076 µm	3 µin	Bronze	IP67 - Dust Tight Waterproof	Unshielded	250 VDC	4 mm 6 mm	0.157 in 0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.59
		10	$ 4.90
		25	$ 4.77
		50	$ 4.67
		100	$ 4.39
		250	$ 4.36
		500	$ 4.08
		1000	$ 3.64
		2500	$ 3.39

Description

General part information

T41105 Series

2 Position Circular Connector Plug, Female Sockets Screw

Documents

Technical documentation and resources

Industrial M8 & M12 Series Circular connector

Datasheet

M12 connection application specification

Datasheet
