150240-5002-RB

Active

CONN RCPT 40P 0.079 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150240-5002-RB

Active

CONN RCPT 40P 0.079 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150240-5002-RB	150240 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide
Insulation Color	Black	Black
Insulation Height	0.179 "	0.177 - 0.183 in
Insulation Height	4.55 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	40	40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150240 Series

CONN RCPT 40POS 0.079 GOLD PCB

Part	Termination	Insulation Material	Contact Finish - Post	Contact Finish - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Mounting Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Height	Insulation Height	Insulation Color	Style	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Positions	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Features
3M 150240-6002-TB	Solder	Thermoplastic	Tin-Lead	Gold	Receptacle	2.54 mm	0.1 in	0.079 in	2 mm	Copper Alloy	Through Hole	UL94 V-0	105 ░C	-55 °C	Female Socket	0.177 in	4.5 mm	Black	Board to Board, Cable	Square	30 Áin	0.76 Ám	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm
3M 150240-6002-RB	Solder	Thermoplastic	Tin	Gold	Receptacle	2.54 mm	0.1 in	0.079 in	2 mm	Copper Alloy	Through Hole	UL94 V-0	105 ░C	-55 °C	Female Socket	0.177 in	4.5 mm	Black	Board to Board, Cable	Square	30 Áin	0.76 Ám	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm
3M 150240-5002-RB	Solder	Thermoplastic	Tin	Gold	Receptacle	2.54 mm	0.1 in	0.079 in	2 mm	Copper Alloy	Through Hole, Right Angle	UL94 V-0	105 ░C	-55 °C	Female Socket	0.179 "	4.55 mm	Black	Board to Board, Cable	Square	30 Áin	0.76 Ám	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm
3M 150240-2020-TH	Solder	Thermoplastic	Tin-Lead	Gold	Receptacle			0.079 in	2 mm	Copper Alloy	Surface Mount	UL94 V-0	105 ░C	-55 °C	Female Socket	0.183 in	4.65 mm	Black	Board to Board, Cable	Square	15 µin	0.38 µm	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150240 Series

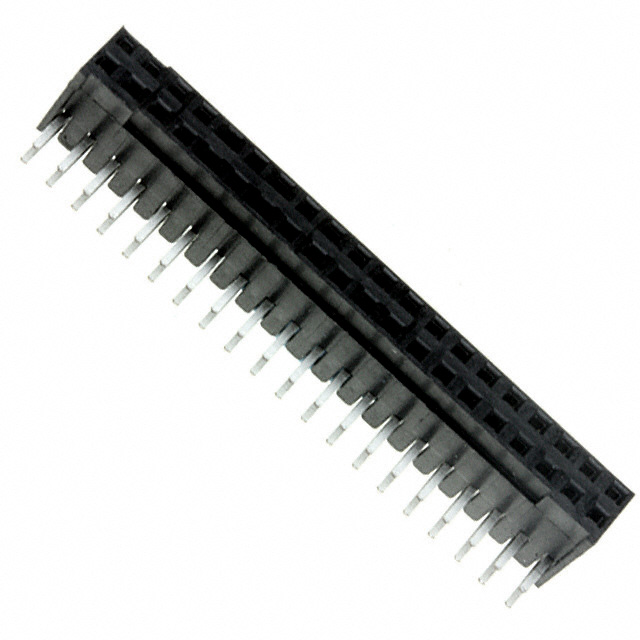

40 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold

Documents

Technical documentation and resources
