150240-6002-TB

Active

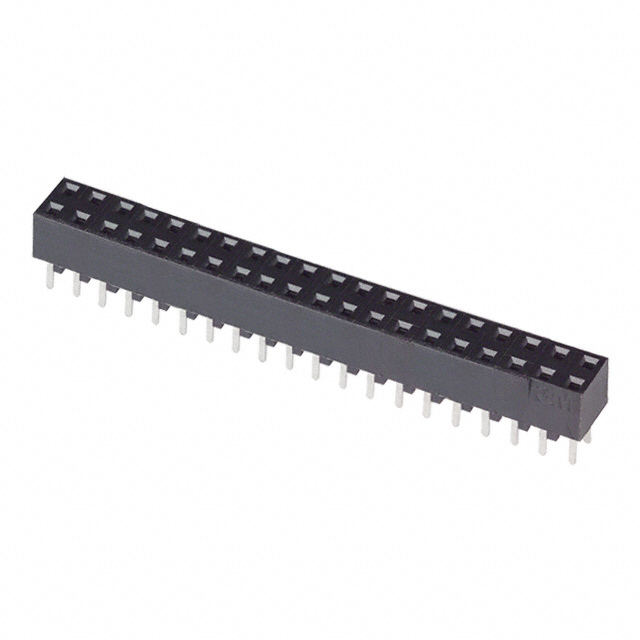

CONN RCPT 40POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150240-6002-TB

Active

CONN RCPT 40POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150240 Series

40 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150240-6002-TB	150240 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.183 in
Insulation Height	4.5 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	40	40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150240 Series

CONN RCPT 40POS 0.079 GOLD PCB

Part	Termination	Insulation Material	Contact Finish - Post	Contact Finish - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Mounting Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Height	Insulation Height	Insulation Color	Style	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Positions	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Features
3M 150240-6002-TB	Solder	Thermoplastic	Tin-Lead	Gold	Receptacle	2.54 mm	0.1 in	0.079 in	2 mm	Copper Alloy	Through Hole	UL94 V-0	105 ░C	-55 °C	Female Socket	0.177 in	4.5 mm	Black	Board to Board, Cable	Square	30 Áin	0.76 Ám	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm
3M 150240-6002-RB	Solder	Thermoplastic	Tin	Gold	Receptacle	2.54 mm	0.1 in	0.079 in	2 mm	Copper Alloy	Through Hole	UL94 V-0	105 ░C	-55 °C	Female Socket	0.177 in	4.5 mm	Black	Board to Board, Cable	Square	30 Áin	0.76 Ám	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm
3M 150240-5002-RB	Solder	Thermoplastic	Tin	Gold	Receptacle	2.54 mm	0.1 in	0.079 in	2 mm	Copper Alloy	Through Hole, Right Angle	UL94 V-0	105 ░C	-55 °C	Female Socket	0.179 "	4.55 mm	Black	Board to Board, Cable	Square	30 Áin	0.76 Ám	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm
3M 150240-2020-TH	Solder	Thermoplastic	Tin-Lead	Gold	Receptacle			0.079 in	2 mm	Copper Alloy	Surface Mount	UL94 V-0	105 ░C	-55 °C	Female Socket	0.183 in	4.65 mm	Black	Board to Board, Cable	Square	15 µin	0.38 µm	2	500 V	200 µin	5.08 µm	Push-Pull	40	All	0.079 in	2 mm	Board Guide
