HS2C3M20C

Active

Switchcraft Inc.

CONN PLUG MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C3M20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

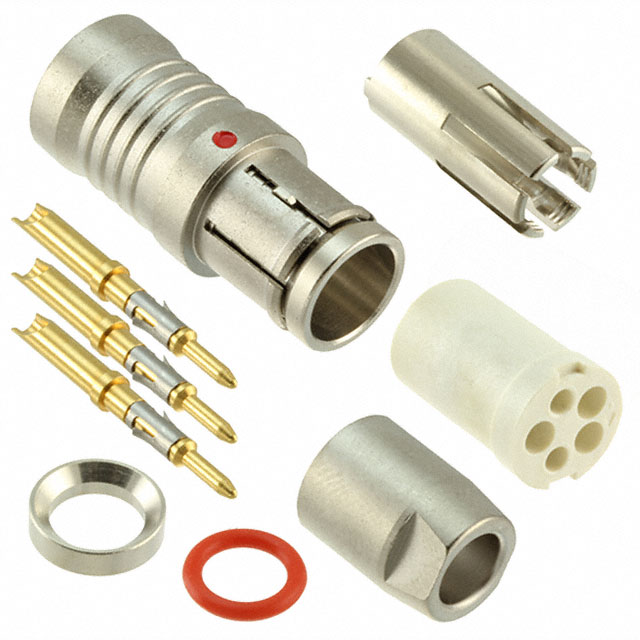

CONN PLUG MALE 3POS GOLD CRIMP

Part	Applications	Termination	Fastening Type	Orientation	Material Flammability Rating	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Finish - Mating	Insert Material	Contact Material	Shell Material	Shielding	Color	Mounting Type	Shell Finish	Ingress Protection	Primary Material
Switchcraft Inc. HS2C3M20C	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Crimp, Solder Cup	Push-Pull	Keyed	UL94 HF-1	125 VAC	Male Pins, Plug	135 °C	-40 °C	5.49 mm	4.57 mm	0.18 in	0.216 in	Gold	Liquid Crystal Polymer (LCP)	Copper Alloy	Copper Alloy	Shielded	Silver	Free Hanging (In-Line)	Electroless Nickel	IP66, IP67, IP68	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
