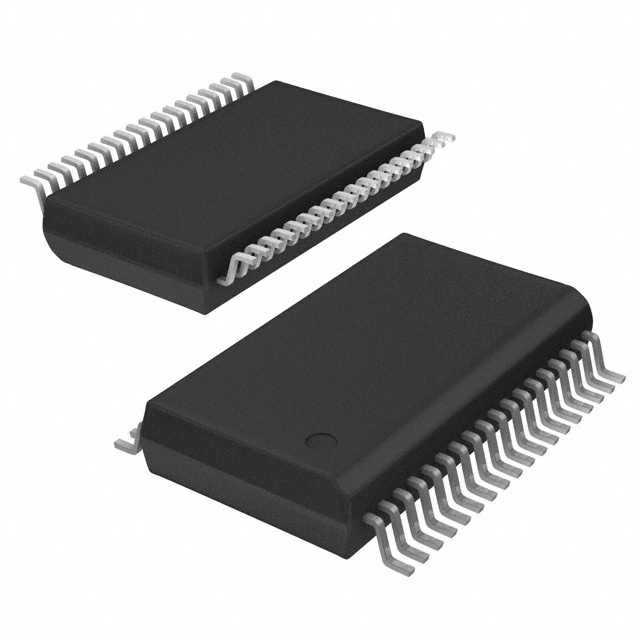

A3935KLQ

Obsolete

Allegro MicroSystems

IC MOTOR DRVR 4.75V-5.25V 36QSOP

Search across all available documentation for this part.

Obsolete

Allegro MicroSystems

IC MOTOR DRVR 4.75V-5.25V 36QSOP

Technical Specifications

Parameters and characteristics for this part

Specification	A3935KLQ

Function	Controller - Commutation, Direction Management
Grade	Automotive
Interface	Parallel
Mounting Type	Surface Mount
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Pre-Driver - Half Bridge (3)
Package / Case	36-BSOP
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	36-QSOP
Technology	Power MOSFET
Voltage - Load [Max]	40 V
Voltage - Load [Min]	7 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Package / Case	Package / Case [y]	Package / Case [y]	Output Configuration	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Grade	Function	Technology	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]
Allegro MicroSystems A3935KLQ	36-BSOP	0.295 in	7.5 mm	Pre-Driver - Half Bridge (3)	Surface Mount	7 V	40 V	135 °C	-40 °C	36-QSOP	Automotive	Controller - Commutation Direction Management	Power MOSFET	Parallel	4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Power MOSFET Parallel 36-QSOP
