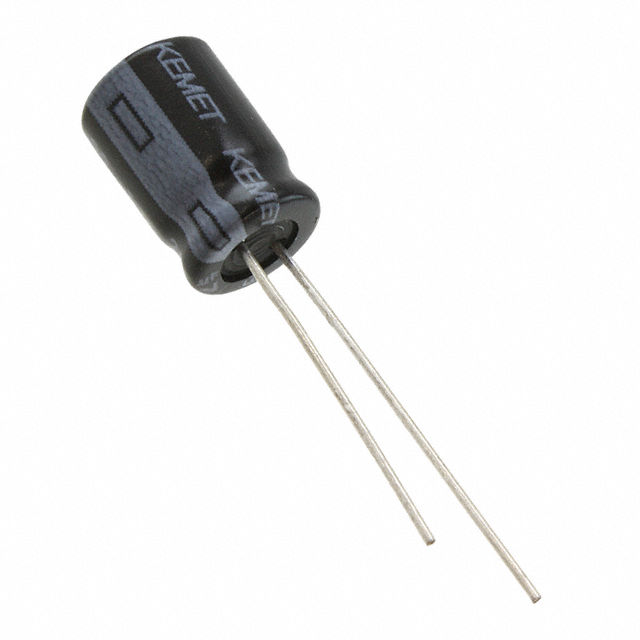

ESW226M100AG3AA

Active

KEMET

CAP, ALU ELEC, 22UF, 100V, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, ALU ELEC, 22UF, 100V, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ESW226M100AG3AA

Applications	General Purpose
Capacitance	22 µF
ESR (Equivalent Series Resistance)	680 mOhm
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Impedance	680 mOhms
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	4000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	230 mA
Ripple Current @ Low Frequency	92 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	100 V

Part	ESR (Equivalent Series Resistance)	Tolerance	Package / Case	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Lifetime @ Temp.	Capacitance	Voltage - Rated	Applications	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency
KEMET ESW226M100AG3AA	680 mOhm	20 %	Radial Can	Through Hole	0.315 "	8 mm	Polar	-40 °C	105 ░C	3.5 mm	0.138 in	230 mA	4000 Hrs	22 µF	100 V	General Purpose	680 mOhms	0.492 in	12.5 mm	92 mA
KEMET ESW226M025AC3AA	600 mOhm	20 %	Radial Can	Through Hole	0.197 "	5 mm	Polar	-40 °C	105 ░C	2 mm	0.079 in			22 µF	25 VDC	General Purpose		0.492 in	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 680mOhm @ 100kHz 4000 Hrs @ 105°C
