3PS-750-2-GY-S-2

Active

BRADY

SLEEVE, 0.75 IN DIA X 1 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.75 IN DIA X 1 IN W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3PS-750-2-GY-S-2	3PS-750 Series

	-	-
Color	Gray	Violet, Black, White, Gray, Blue, Pink, Red, Yellow, Brown, Green
Label Size	-	31.8 mm
Label Size	-	50.8 mm
Label Size	-	17.8 mm
Label Size	-	6.4 mm
Label Size	-	0.75 "
Label Size [Max]	0.24 "	0.24 - 0.7 "
Label Size [Max]	6.1 mm	0.7 - 17.8 in
Label Size [Min]	3.4 mm	0.25 - 9.5 "
Label Size [Min]	0.13 in	0.13 - 0.38 in
Label Size [x]	25.4 mm	25.4 - 50.8 mm
Label Size [x]	1 in	1 in
Label Size [y]	1.25 "	1.25 - 2 "
Label Size [y]	31.8 mm	1.25 - 31.8 "
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 0.75 IN DIA X 2 IN W

Part	Label Type	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [Max]	Label Size [y]	Label Size [y]	Label Size [x]	Label Size [Min]	Label Size [x]	Label Size [Max]	Label Size [Min]	Material	Color	Label Size [Max]	Label Size [y]	Label Size [Min]	Label Size [x]
BRADY 3PS-750-2-OR-S	Heat Shrinkable	135 °C	-55 °C	0.7 in	31.8 mm	1.25 "	50.8 mm	0.25 "	50.8 mm	17.8 mm	6.4 mm	Polyolefin (PO)
BRADY 3PS-750-2-VT	Heat Shrinkable	135 °C	-55 °C	0.7 in	31.8 mm	1.25 "	50.8 mm	0.25 "	50.8 mm	17.8 mm	6.4 mm	Polyolefin (PO)	Violet
BRADY 3PS-750-2-BK-S	Heat Shrinkable	135 °C	-55 °C	0.7 in	31.8 mm	1.25 "	50.8 mm	0.25 "	50.8 mm	17.8 mm	6.4 mm	Polyolefin (PO)	Black
BRADY 3PS-750-2-WT-S	Heat Shrinkable	135 °C	-55 °C	0.7 in	31.8 mm	1.25 "	50.8 mm	0.25 "	50.8 mm	17.8 mm	6.4 mm	Polyolefin (PO)	White
BRADY 3PS-750-2-GY-S-2	Heat Shrinkable	135 °C	-55 °C	6.1 mm		31.8 mm		3.4 mm	25.4 mm			Polyolefin (PO)	Gray	0.24 "	1.25 "	0.13 in	1 in
BRADY 3PS-750-2-WT-J	Heat Shrinkable	135 °C	-55 °C	0.7 in	31.8 mm	1.25 "	50.8 mm	0.25 "	50.8 mm	17.8 mm	6.4 mm	Polyolefin (PO)	White
BRADY 3PS-750-2-YL-S-2
BRADY 3PS-750-2-BL-2	Heat Shrinkable	135 °C	-55 °C	6.1 mm		31.8 mm		3.4 mm	25.4 mm			Polyolefin (PO)	Blue	0.24 "	1.25 "	0.13 in	1 in
BRADY 3PS-750-2-VT-S	Heat Shrinkable	135 °C	-55 °C	0.7 in	31.8 mm	1.25 "	50.8 mm	0.25 "	50.8 mm	17.8 mm	6.4 mm	Polyolefin (PO)	Violet
BRADY 3PS-750-2-WT-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 257.49

General part information

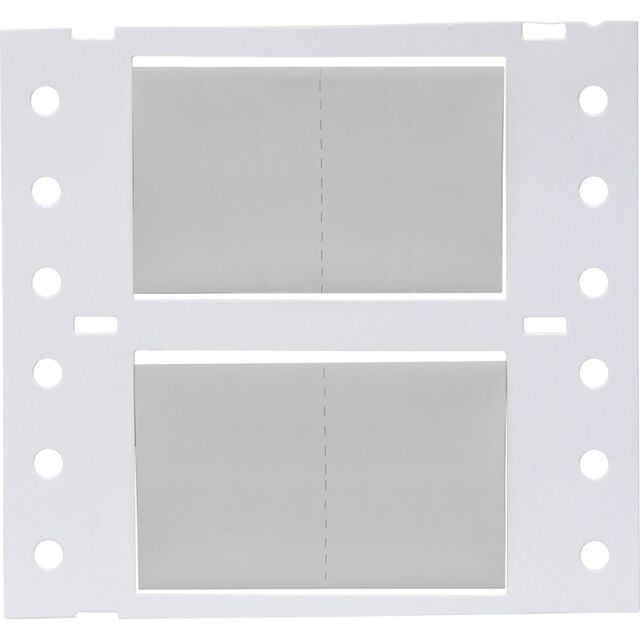

Gray Heat Shrinkable Label 1.00" W x 1.25" H (25.4mm x 31.8mm); Cable O.D. 0.13" ~ 0.24" (3.40mm ~ 6.1mm)
