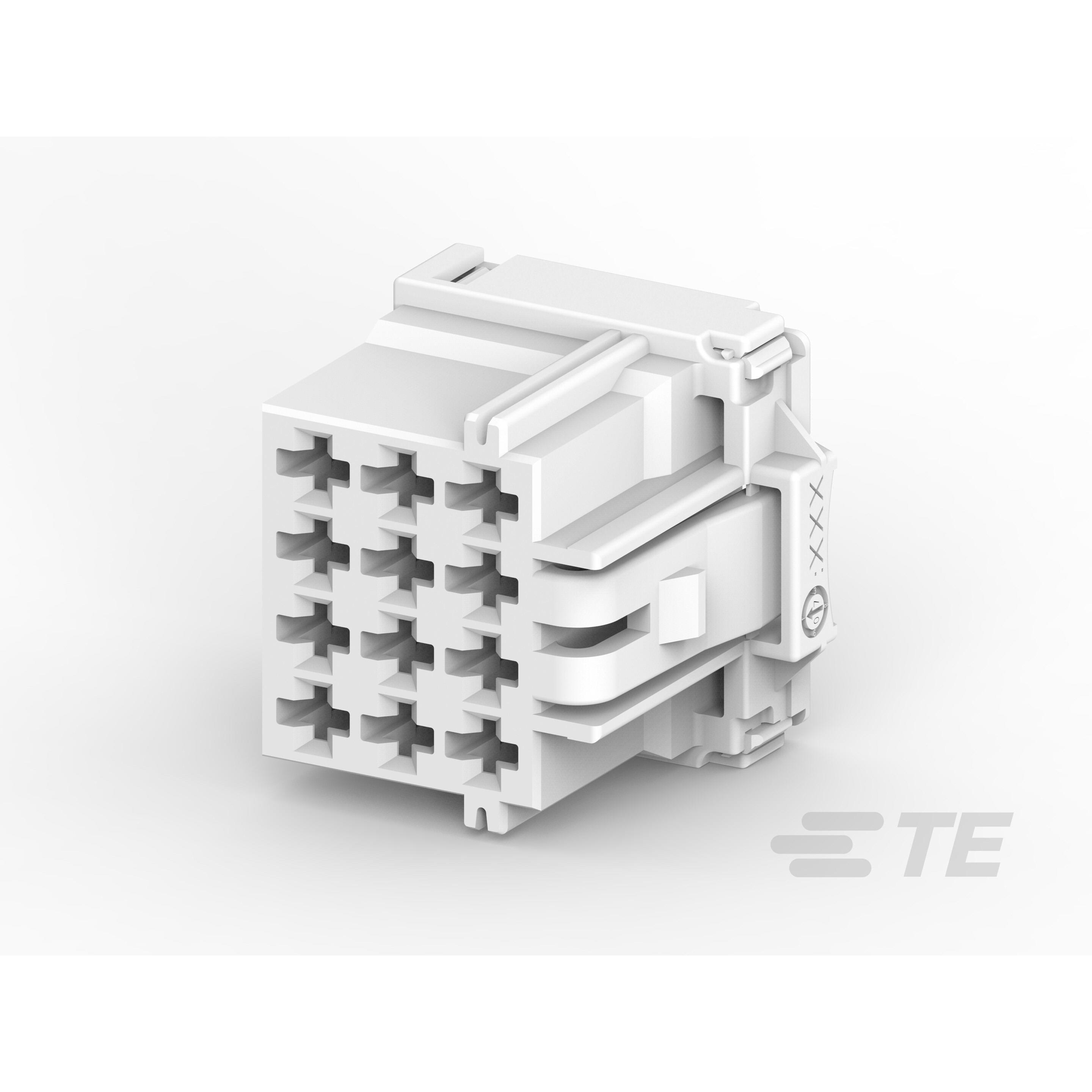

7-968972-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-968972-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-968972-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing | 5.51 mm |
| Row Spacing [x] | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.37 | |
| 10 | $ 1.28 | |||
| 100 | $ 1.11 | |||
| 1500 | $ 0.87 | |||
| 6000 | $ 0.79 | |||
| 10500 | $ 0.74 | |||
968972 Series
CONN RCPT HSG 12POS 5.00MM
| Part | Row Spacing [x] | Row Spacing | Fastening Type | Contact Type | Mounting Type | Connector Type | Pitch [x] | Pitch [x] | Contact Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Note | Insulation Material | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-968972-1 | 0.217 in | 5.51 mm | Latch Lock | Female Socket | Free Hanging (In-Line) | Receptacle | 5 mm | 0.197 in | Crimp | 3 | -40 °C | 120 °C | Contacts Not Included | Polybutylene Terephthalate (PBT), Glass Filled | 12 | Natural |
Description
General part information
968972 Series
12 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
