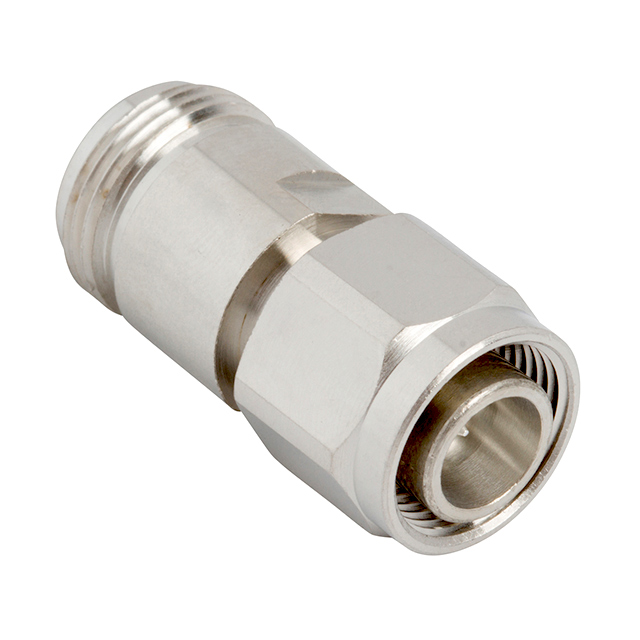

AD-NJ225P-1

Active

Amphenol RF

COAX ADAPT N TO 2.2/5

Search across all available documentation for this part.

Active

Amphenol RF

COAX ADAPT N TO 2.2/5

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NJ225P-1

Adapter Series	N, 2.2/5
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	2.2/5 Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Impedance	Body Finish	Style	Mounting Type	Conversion Type	Adapter Series	Body Material	Frequency - Max [Max]	Center Contact Plating	Mating Cycles	Dielectric Material	Adapter Type	Center Contact Material	Convert From (Adapter End)
Amphenol RF AD-NJ225P-1	100 °C	-55 °C	2.2/5 Plug Male Pin	50 Ohms	White Bronze	Straight	Free Hanging (In-Line)	Between Series	2.2/5 N	Brass	6000 MHz	Silver	500	Polytetrafluoroethylene (PTFE)	Plug to Jack	Beryllium Copper	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To 2.2/5 Plug, Male Pin 50 Ohms
