SSL-LX3034YD

Active

Lumex Opto/Components Inc.

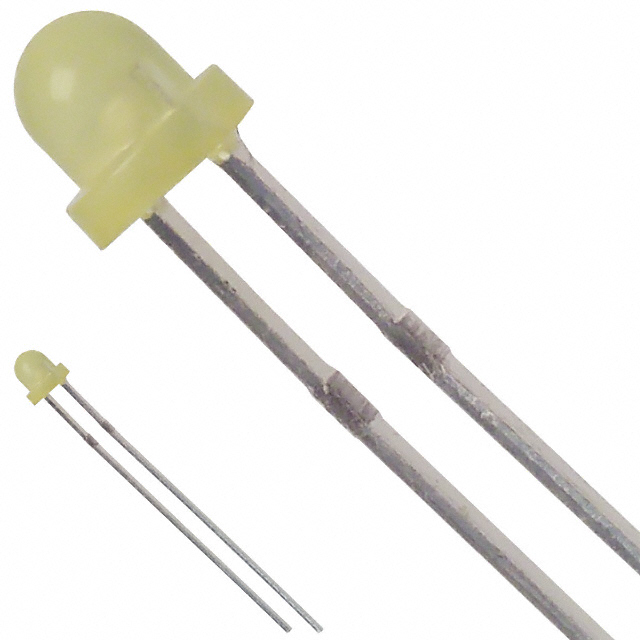

LED YELLOW DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED YELLOW DIFFUSED T-1 T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20000	$ 0.08

General part information

Yellow LED Indication - Discrete 2.1V Radial

Technical documentation and resources

No documents available

Part	Current - Test	Viewing Angle	Configuration	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Millicandela Rating	Lens Color	Lens Style	Color	Supplier Device Package	Mounting Type	Package / Case	Lens Transparency	Lens Size	Lens Size
Lumex Opto/Components Inc. SSL-LX3034GD	20 mA	60 °	Standard	3.8 mm	2.2 V	565 nm	10 mcd	Green	Round with Domed Top	Green	T-1	Through Hole	Radial	Diffused	3 mm	T-1
Lumex Opto/Components Inc. SSL-LX3034YD	20 mA	60 °	Standard	3.8 mm	2.1 V	585 nm	10 mcd	Yellow	Round with Domed Top	Yellow	T-1	Through Hole	Radial	Diffused	3 mm	T-1
Lumex Opto/Components Inc. SSL-LX3034ID	20 mA	60 °	Standard	3.8 mm	2 V	635 nm	10 mcd	Red	Round with Domed Top	Red	T-1	Through Hole	Radial	Diffused	3 mm	T-1
