Specification	01070001H

Contact Finish	Tin
Contact Material	Spring Brass
Current Rating	30 A
For Use With/Related Products	9/16" Dia Fuses
Fuse Diameter	0.563 in
Fuse Type	Cartridge
Fuseholder Type	Clip
Mounting Type	Chassis Mount
Number of Circuits	1
Termination Style	Solder Lug
Voltage	250 V

107001 Series

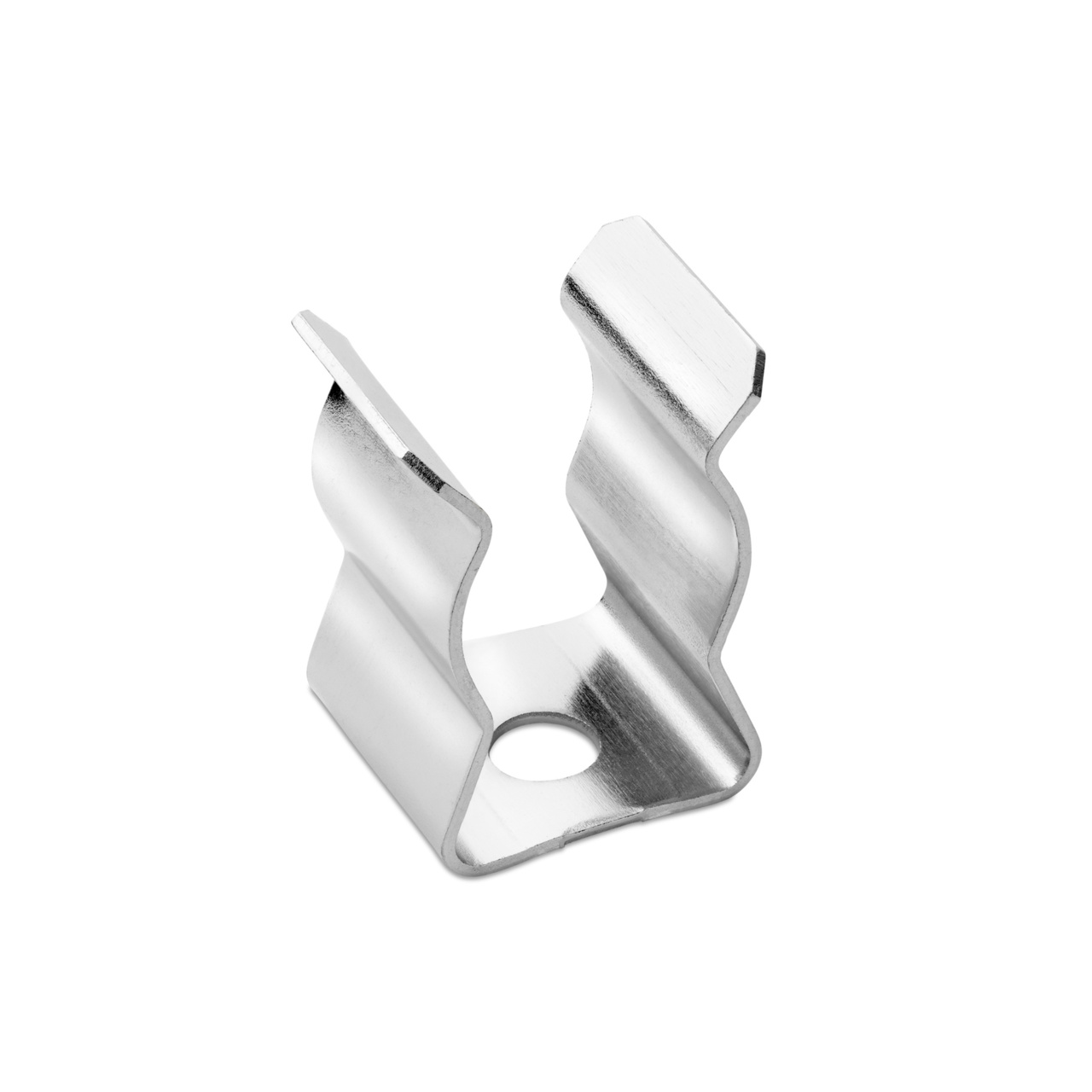

ACS FUSE CLIP 9/16 DIA

Part	Contact Finish	Fuse Diameter	Voltage	Fuseholder Type	For Use With/Related Products	Fuse Type	Current Rating	Contact Material	Termination Style	Number of Circuits	Mounting Type
LITTELFUSE 01070001H	Tin	0.563 in	250 V	Clip	9/16" Dia Fuses	Cartridge	30 A	Spring Brass	Solder Lug	1	Chassis Mount
LITTELFUSE 01070001Z	Tin	0.563 in	250 V	Clip	9/16" Dia Fuses	Cartridge	30 A	Spring Brass	Solder Lug	1	Chassis Mount
